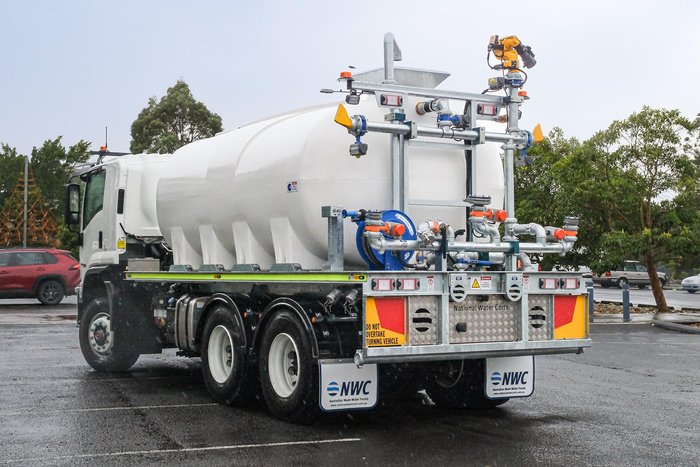

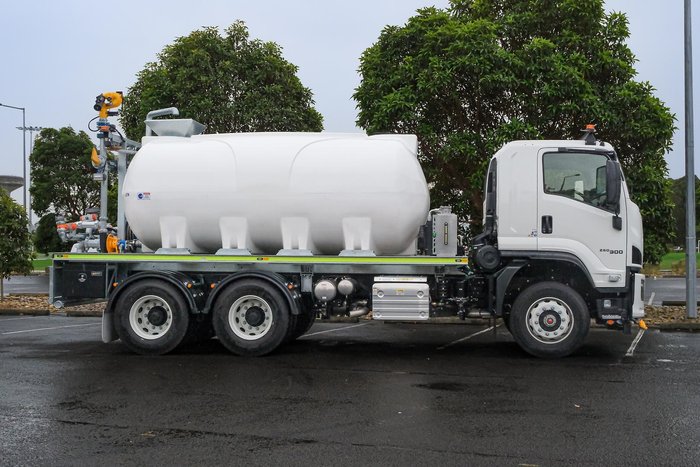

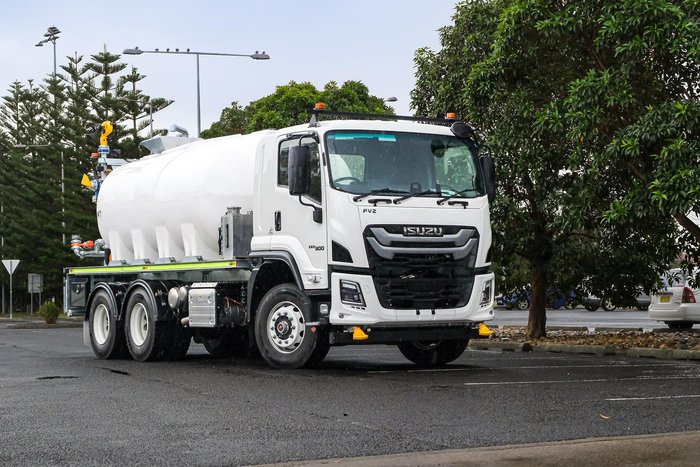

2025 Isuzu F Series

2025 FVZ 260-300 AT R46

Engine: Isuzu DB6A-TCC | 6.7L 6 Cylinder Turbo Diesel
Transmission: 6 speed Allison AUTO 3000 GEN 6

Power: 300 Hp | 221 kW @ 2200 RPM
Torque: 981 Nm @ 1000 - 2100 RPM

Weight Rating: GVM: 26,000 Kg GCM: 36,000 Kg
Wheelbase: 4,595 mm

National Water Carts

13,000lt CivMaster Hydraulic Chassis Module to suit FVZ 260-300 AT R47
1. Water Tank & Frame
• Tank Capacity: 13,000L poly water cart tank with sight tube at the rear
• Tank Warranty: 20-year poly tank warranty
• Baffle Balls: Fitted with baffle balls for load stability
• Mounting: Spring mounted to chassis
• Frame: Hot-dip galvanized for durability
• Top Fill Funnel: For standpipe or overhead filling
• Rear Drop-Down Bar/Step: For easy access
2. Water Pump & Hydraulic System
• Water Pump: Cast Iron hydraulic self-priming 4" water pump with close coupled hydraulic motor. Maximum flow 3,000lpm, pressure 100psi
• Hydraulic System: Load sense hydraulics. Includes variable displacement PTO pump and proportional valve for load sense hydraulic operation
• Constant Pressure System: Variable displacement with dial-up control in-cab for spray volume adjustment
• Oil Tank: 45lt oil tank with integrated fan cooling system and filtration
3. Spray, Fill & Suction System
• Hose Reel: 1" rubber washdown hose with adjustable nozzle
• Rear Sprays: 3 rear spray heads (left, right and centre) air-operated from the in-cab control panel
• Rear Spray Adjustability: Fully adjustable spray nozzles
• Front Sprays: Left & Right individually actuated road cleaning front sprays
• Batter Sprays: Left & Right high volume vertical sprays
• Cannon: Australian made rotating cannon with electronically adjustable nozzle
• Dribble Bar: Gravity fed full width dribble bar
• Discharge Outlet: 1x 3" discharge outlet with manual valve for high volume water transfer
• Rear Fill Point: 3" rear fill point at chassis level with bronze one-way valve and cam lock fitting
• Creek Suction Setup: Pipework for self-filling from creeks or dams, equipped with galvanized fittings
• Pipework: All pipework and fittings are galvanized for longevity
4. Lighting, Electrical & Safety Features
• Rear Taillights: Includes side clearance lights and high mount taillight duplication for low visibility environments
• Beacons: Rotating beacon on a roof bar & rear flashing beacon
• UHF Radio: 80 Channel UHF
• Isolators: Lockable battery (red) and starter (yellow) isolators fitted
• Audible Reverse Alert: White noise reverse squawker fitted
• Audible Alert: Handbrake alarm to horn
• E-Stops: One fitted in cabin and one fitted on the body
• Work Lights: 2 X Rear facing work lights fitted
• Reverse Camera: Fitted with in cab display
5. Control System
• Control System: Premium CANBUS System. Fully integrated CANBUS control unit with sensor array for water level, hydraulic oil temperature, and pump output level. Digital display showing each status with rotating adjustor for pump speed setting. Automatic cutoff at low water level to prevent dry run damage. Incorporates rear control panel for operation of pump, suction fill, and hose reel with adjustable pump speed control
6. Certification & Compliance
• VASS Certification: Provided

Intelligent Safety Features:

Advanced Emergency Braking (AEB)
Adaptive Driving Beam (ADB)
Anti Lock Braking System (ABS)
Anti Skid Regulator (ASR)
Attention Alert System (AAS)
Auto Lighting System (ALS)
Cab Tilt Warning (CTW)
Customisable Speed Limiter (CSL)
Distance Warning System (DWS)
Electronic Stability Control (ESC)
Forward Collision Warning (FCW)
Full Speed Adaptive Cruise Control (FACC)
Intelligent Speed Limiter (ISL)
Lane Departure Warning (LDW)
Lane Keeping Assist (LKA)
Traffic Movement Warning (TMW)
Traffic Sign Recognition (TSR)

Standard Features:

ECE-R29 Cab with Side Anti-Intrusion Beams
Driver and Front Passenger Airbags
Driver and Front Passenger Seatbelt Pretensioners
Door Mounted Cornering Lamps
Overhead storage compartments with doors
ADR 80/04 (Euro VI) compliant
SCR (Selective Catalytic Reduction)
DPD (Diesel Particulate Diffuser)
Engine Compression Brake (I-Brake)
ISRI 6860/875 NTS2 Air Suspension Driver's Seat
Bi-LED Headlamps with Daytime Running Lamps
My ISUZU Co-Pilot Audio Visual Unit
Heated & powered exterior main mirrors
with flat glass and additional independently
adjustable convex spot mirrors
Auto windshield wiper system, wet wipers
Adaptive Driving Beam (ADB) and Daytime Running Lamps
LED tail lamps
Front LED foglamps
Air Conditioning Auto control

Warranty:
6 Year Standard Warranty | 500,000 Km | 8,000 Hours (Whichever Comes First)

Roadside Assistance:
6 Year Roadside Support 24/7 | Unlimited Km

Servicing package tailor made to suit customer application available upon request

Please Note: Warranty period may differ depending on harsh application (4x4, AWD, Agitator, Compactor, etc.)
