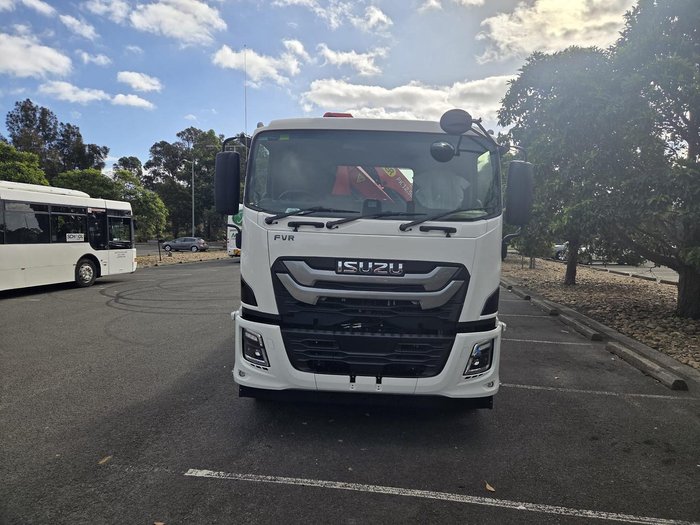

2025 Isuzu F Series

FVR 170-360 AT R60 (MY25) EURO 6

Engine: Isuzu DB6A-TCN | 6.7L 6 Cylinder Turbo Diesel
Transmission: 6 speed Allison AUTO 3000 GEN 6

Power: 260 Hp | 191 kW @ 2070 RPM
Torque: 883 Nm @ 1000 - 2070- RPM

Weight Rating: GVM: 17,000 Kg GCM: 32,000 Kg
Wheelbase: 6,000 mm

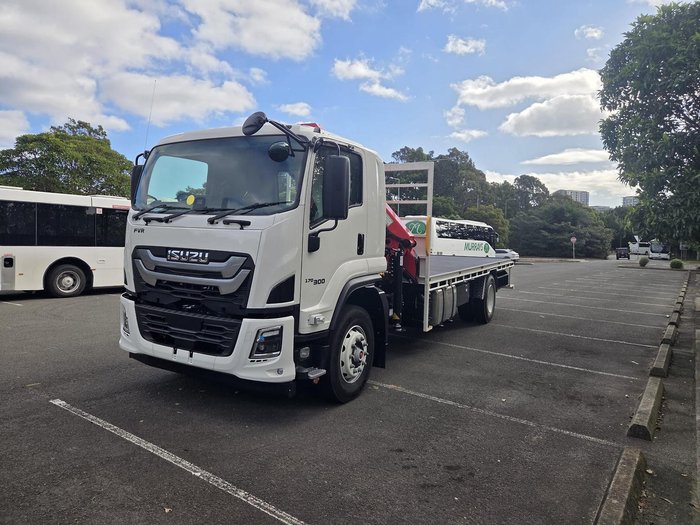

Palfinger PK 12.501 SLD 5 Extension C Front Mount Crane

Lifts 2650kg @4m
Lifts 1700kg @5.9m
Lifts 1240Kg @7.8m
Lifts 770kg @11.9m

Make an enquiry to discuss this crane truck further


New Age Truck Bodies heavy duty steel tray

6500mm overall length
2495mm overall width
10 pallet space capacity.
5mm steel chequer plate floor, sheets painted black with 20mm combing.
100mm channel main runners.
75 x 40mm channel cross bearers welded to the main runners.
100 x 50mm channel side combing rails.
Heavy duty Rope rail pipe to full length of body on each side of the body 75mm below the combing rails.
Pipe or RHS stirrup steps with chequer plate foot platforms on each side of the body at the front – front & rear.
2 x underbody toolboxes.
5 x Underbody sling winches.
Heavy Duty Headboard.
Heavy duty RHS steel constructed frame
600mm high 3mm steel chequer plate kick late at the base of the headboard
Panel slats, RHS stringers or mesh from the top of kick plate to the top of headboard
Grab handles located on the headboard for climbing access with ladder style steps,
ADR approved LED clearance and marker lamps only fitted to comply with all regulations
.
Standard & Extra Inclusions
Aluminium propeller plate mudguards with steel supports each side of the rear wheels
Rear step.
All compulsory mudguards, reflectors, marker plates, etc.
Engineers certificate.


Intelligent Safety Features:

Advanced Emergency Braking (AEB)
Adaptive Driving Beam (ADB)
Anti Lock Braking System (ABS)
Anti Skid Regulator (ASR)
Attention Alert System (AAS)
Auto Lighting System (ALS)
Cab Tilt Warning (CTW)
Customisable Speed Limiter (CSL)
Distance Warning System (DWS)
Electronic Stability Control (ESC)
Forward Collision Warning (FCW)
Full Speed Adaptive Cruise Control (FACC)
Intelligent Speed Limiter (ISL)
Lane Departure Warning (LDW)
Lane Keeping Assist (LKA)
Traffic Movement Warning (TMW)
Traffic Sign Recognition (TSR)

Standard Features:

ECE-R29 Cab with Side Anti-Intrusion Beams
Driver and Front Passenger Airbags
Driver and Front Passenger Seatbelt Pretensioners
Door Mounted Cornering Lamps
Overhead storage compartments with doors
ADR 80/04 (Euro VI) compliant
SCR (Selective Catalytic Reduction)
DPD (Diesel Particulate Diffuser)
Engine Compression Brake (I-Brake)
Isri 6860/875 NTS2 Air Suspension Driver’s Seat
Bi-LED Headlamps with Daytime Running Lamps
MyISUZU Co-Pilot Audio Visual Unit
Heated & powered exterior main mirrors
with flat glass and additional independently
adjustable convex spot mirrors
Auto windshield wiper system, wet wipers
Adaptive Driving Beam (ADB) and Daytime Running Lamps
LED tail lamps
Front LED foglamps
Air Conditioning Auto control



Warranty:
6 Year Standard Warranty | 500,000 Km | 10,000 Hours (Whichever Comes First)

Roadside Assistance:
6 Year Roadside Support 24/7 | Unlimited Km

Servicing package tailor made to suit customer application available upon request

Please Note: Warranty period may differ depending on harsh application (4x4, AWD, Agitator, Compactor, etc.)
