2025 Isuzu N Series

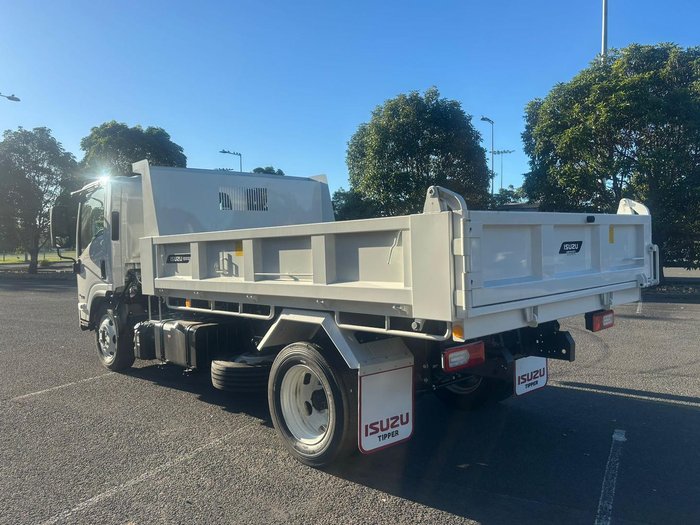

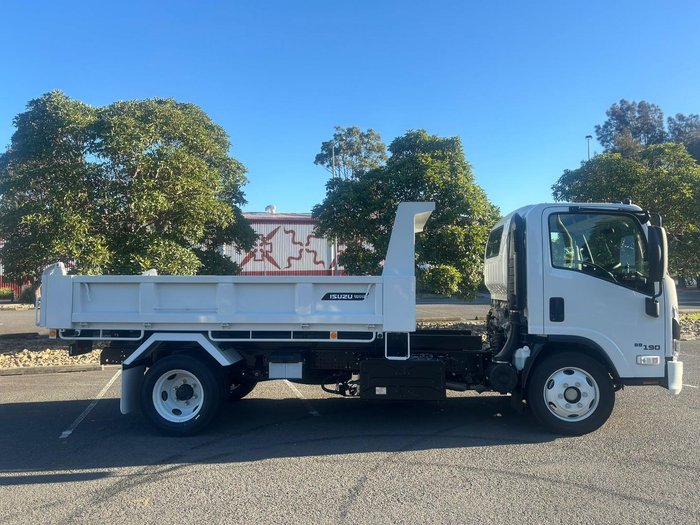

2026 ISUZU NQR 88/80-190 AM D38 TIPPER

Ready-to-Work Steel Tipper


VEHICLE OVERVIEW

Model: NQR 88/80-190 AM D38 Tipper
GVM: 8,800 kg / 8,000 kg
GCM: 12,300 kg
Wheelbase: 3,815 mm
Engine: Isuzu 4HK1-TCC 4 Cylinder Turbo Diesel
Power: 140 kW @ 2,600 rpm
Torque: 513 Nm @ 1,600 - 2,600 rpm
Transmission: 6-Speed Automated Manual Transmission (AM)


TIPPER FEATURES

Body Dimensions: 3,600 mm (L) x 2,350 mm (W) x 450 mm (H)
Internal Dimensions: 3,600 mm (L) x 2,160 mm (W)
Cubic Volume: 3.4 m³
All Steel Body with Drop Sides
Auto Release Body Lockdown Hook
Auto Release Two-Way Tailgate
LHS and RHS Rope Rails

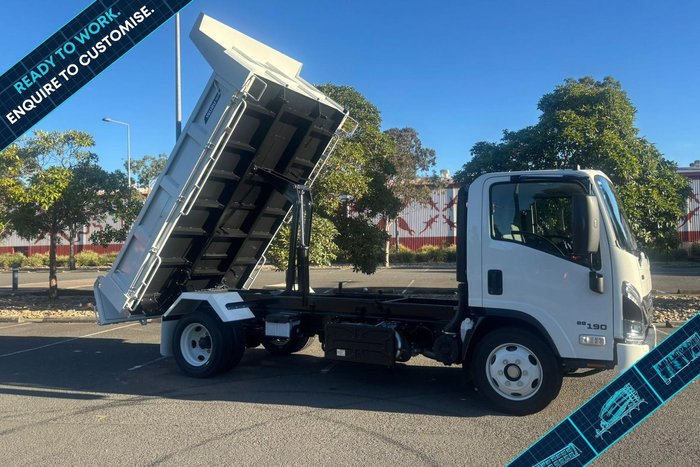

20 Sec. Raise / 25 Sec. Lower Time
Deck Plate Thickness: 4.5 mm
Side / Front / Tail Plate Thickness: 3.2 mm
Isuzu Low Light Capable Reversing Camera
Non-Slip Side Steps


CHASSIS

Steering: Power Assisted Recirculating Ball
Configuration: 4x2
Axle Drive Type: Single Steer, Single Drive Axle
Front Suspension: Single Stage Steel Taper Leaf Springs with Double Acting Hydraulic Shock Absorbers
Rear Suspension: Multi Leaf Main and Helper Springs with Double Acting Hydraulic Shock Absorbers and Stabiliser Bar
Brakes: Ventilated Disc/Disc with Dual Circuit Hydraulic Control and Integrated Boost Assist
Front Axle Capacity: 3,100 kg
Rear Axle Capacity: 6,600 kg
Fuel Tank: 140 L Steel
AdBlue Tank: 16 L High-Density Polyethylene
Chassis Frame: Cold Rivetted Ladder Frame
Front Axle Tyres: 225/70R19.5 125/123L Michelin
Rear Axle Tyres: 225/70R19.5 125/123L Michelin


CABIN & SAFETY

Auto Climate Control
Mechanical Suspension Driver's Seat with Weight Adjustment to 130 kg
10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with LED Daytime Running Lamps (DRL)
Front LED Fog Lamps
LED Tail Lamps
Advanced Emergency Braking (AEB)
Anti-Lock Braking System (ABS)
Anti-Skid Regulator (ASR)
Automatic Lighting System (ALS)
Cab Tilt Warning (CTW)
Customisable Speed Limiter (CSL)
Distance Warning System (DWS)
Driver Attention Alert (DAA)
Electric Park Brake (EPB)
Electronic Stability Control (ESC)
Forward Collision Warning (FCW)
Full Speed Adaptive Cruise Control (F-ACC)
Intersection Emergency Braking (IEB)
Intersection Warning System (IWS)
Lane Departure Warning (LDW)
Miss Acceleration Mitigation (MAM)
Traffic Movement Warning (TMW)
Traffic Sign Recognition (TSR)
Driver and Front Passenger Airbags
Reverse Alarm

________________________________________
WARRANTY & SERVICE

Chassis Warranty: 6 Years / 250,000 km / Unlimited Hours
Body Equipment Warranty: 3 Years
Genuine Parts & Accessories: 3 Years Standard Warranty when Installed by an Isuzu Trucks Approved Dealership, Including Labour
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km
.
