2025 Isuzu N Series

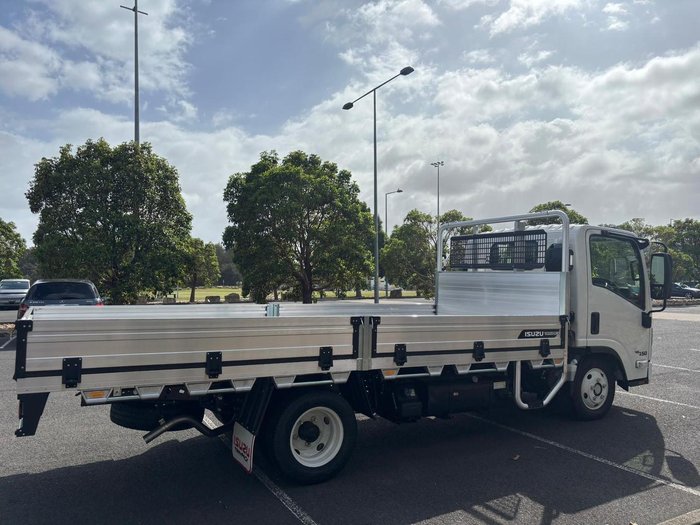

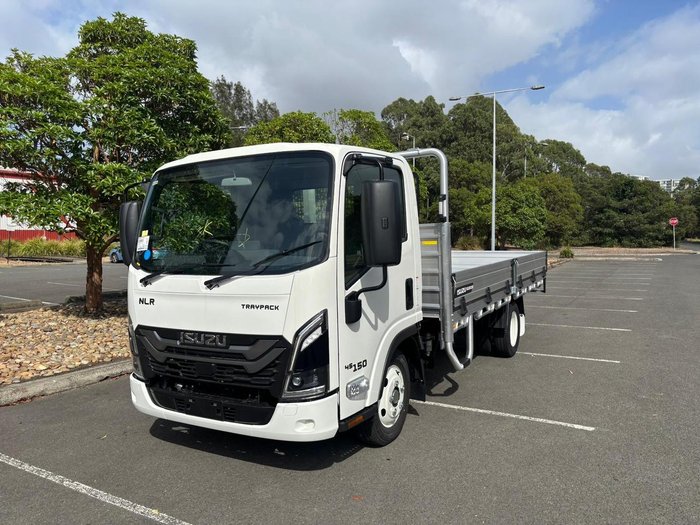

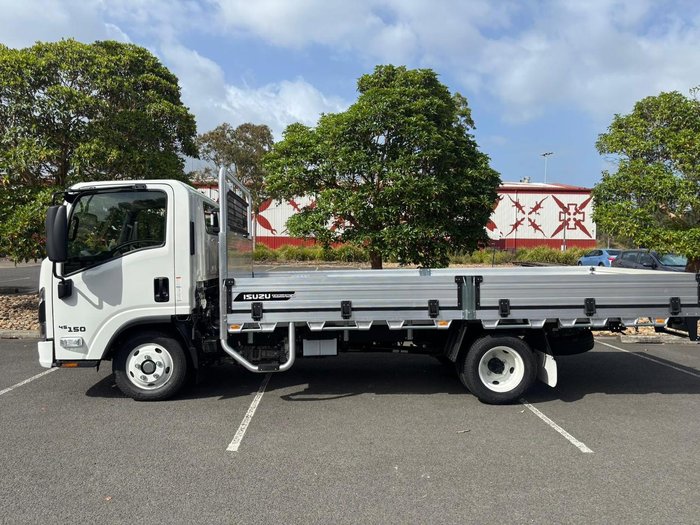

ISUZU NLR 45-150 DT D34 TRAYPACK

Ready-to-Work Aluminium Tray


VEHICLE OVERVIEW

Model: NLR 45-150 DT D34 Traypack
GVM: 4,500 kg
GCM: 8,000 kg
Towing Capacity: 4,000 kg
Wheelbase: 3,360 mm
Engine: Isuzu 4JZ1-TCS 4 Cylinder Turbo Diesel
Power: 110 kW @ 2,800 rpm
Torque: 375 Nm @ 1,280 - 2,800 rpm
Transmission: 9-Speed Dual-Clutch Transmission (DT)


TRAYPACK FEATURES

Body Dimensions: 4,708 mm (L) x 2,091 mm (W) x 325 mm (H)
Internal Dimensions: 4,500 mm (L) x 1,958 mm (W)
Heavy Duty Truck Aluminium Deck Rated to 5 Tonne
Corner Stirrup with Moulded Tread Plate
External Ratchet Rails Rated to 600 kg Each
Fold Down Ear System
Metal Encapsulated Glass Fibre Reinforced Nylon Catches
New & Improved Quick Lock Hinge System
Powder Coated Window Protector and Tail Light Protector
Removable Dropsides and Tailgate with Cargo Seal for Easy Tiedown Access and Load Retainment
Tube Headboard with Grab Handles


CHASSIS

Front Axle Capacity: 2,600 kg
Rear Axle Capacity: 5,000 kg
Fuel Tank: 100 L Steel
AdBlue Tank: 14 L High-Density Polyethylene
Front Axle Tyres: 205/75R16C 113/111R Michelin
Rear Axle Tyres: 205/75R16C 113/111R Michelin


CABIN

Auto Climate Control
Mechanical Suspension Driver's Seat with Weight Adjustment to 130 kg
10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with LED Daytime Running Lamps (DRL)
LED Tail Lamps
Reverse Alarm


WARRANTY & SERVICE

Chassis Warranty: 6 Years / 250,000 km / Unlimited Hours
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km
