2025 Isuzu N Series

ISUZU NPR 45/65-175 DT D28

Medium Duty Cab Chassis


VEHICLE OVERVIEW

Model: NPR 45/65-175 DT D28
GVM: 4,500 kg / 6,500 kg
GCM: 8,000 kg
Towing Capacity: 4,500 kg
Wheelbase: 2,795 mm
Engine: Isuzu 4JZ1-TCH 4 Cylinder Turbo Diesel
Power: 129 kW @ 2,860 rpm
Torque: 430 Nm @ 1,450 - 2,860 rpm
Transmission: 9-Speed Dual-Clutch Transmission (DT)

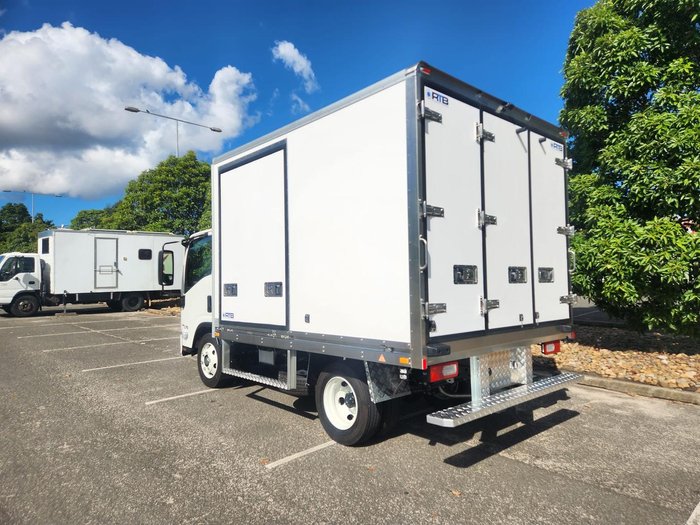

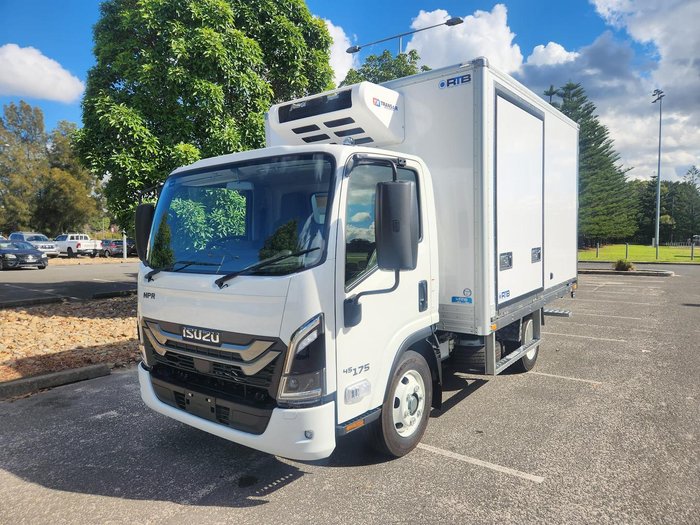

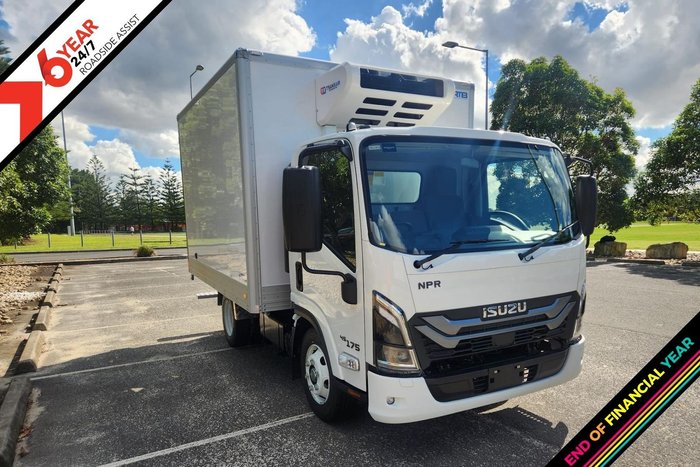

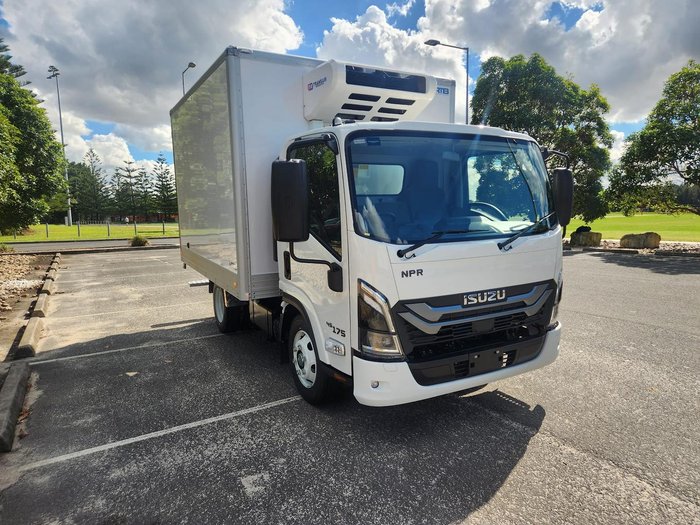

REFRIGERATED TRUCK BODIES

RTB/CY33W3*-SD 4 pallet 14m3 Refrigerated
Body
3300mm x 2500 x 1900 Internal Height
Heavy duty fully welded extruded T6061-T6
aircraft-grade aluminum alloy floor
Single sliding side door, Pallet width, opening
passenger side front
Triple rear door
Stainless steel hardware and door with
thermal break frames
1 x row stainless steel cargo track with bar
and holder
TransAir TU-07 Off Engine Drive (KAU05)
Voltage: 24V
Temperature Rating: -18 deg C


FEATURES

ADR 80/04 (pPNLT) Compliant
Bi-LED Headlamps with Daytime Running Lamps (DRL)
Electric Park Brake (EPB) with Auto Brake Hold
ECE-R29 Cab with Side Anti-Intrusion Beams
Driver Suspension Seat


CHASSIS

Front Axle Capacity: 2,600 kg
Rear Axle Capacity: 6,000 kg
Fuel Tank: 100 L Steel
AdBlue Tank: 14 L High-Density Polyethylene
Front Axle Tyres: 205/75R17.5 124/122M Michelin
Rear Axle Tyres: 205/75R17.5 124/122M Michelin


CABIN

Auto Climate Control
Mechanical Suspension Driver's Seat with Weight Adjustment to 130 kg
10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with LED Daytime Running Lamps (DRL)
Front LED Fog Lamps
LED Tail Lamps
Reverse Alarm


WARRANTY & SERVICE

Chassis Warranty: 6 Years / 250,000 km / Unlimited Hours
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km
