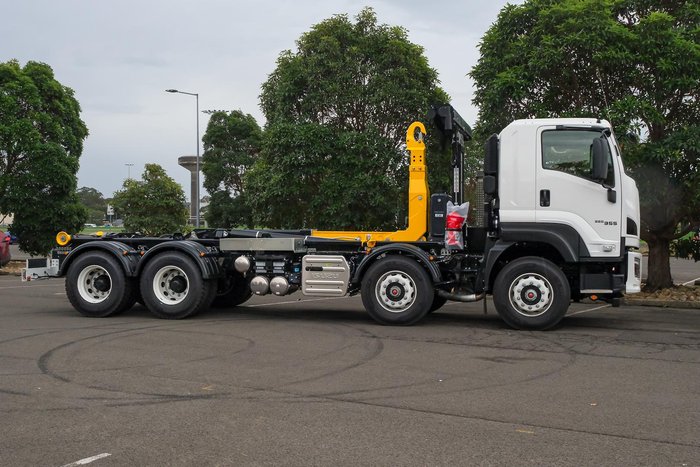

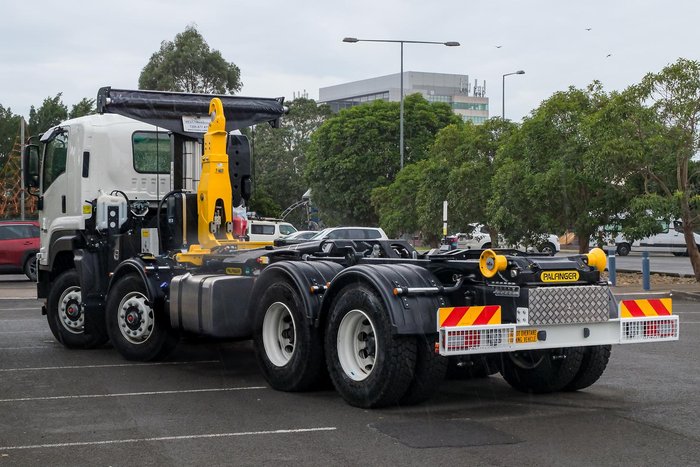

2025 Isuzu FY Series

ISUZU FYJ 320-355 AT R60

Heavy Duty 8x4 Cab Chassis

VEHICLE OVERVIEW

Model: FYJ 320-355 AT R60
GVM: 32,000 kg
GCM: 45,000 kg
Wheelbase: 6,010 mm
Engine: Isuzu 6UZ1-TCC 6 Cylinder Turbo Diesel
Power: 259 kW @ 2,000 rpm
Torque: 1,437 Nm @ 1,400 rpm
Transmission: Allison 4430 GEN 6 6-Speed Automatic Transmission (AT)

PALFINGER HT 22A TEC HOOK LOADER

Features:
22 t maximum lifting capacity
Low tare weight.
Soft stop on lowering side of main lift cylinders.
Palfinger chassis mounting kit
Hydraulic front bin locks
Oil tank mounted behind cab
9 kg fire extinguisher
Broom, shovel and pole hook
Mesh tail light covers over factory lights
LED work lights on tarp x4
Tool box black small 600x400x500 fitted
Palfinger genuine tarp box
West-Trans Hycover Tarp
Auto cycle
Safety interlock systems.
Load hold valves on lift, telescopic and bin lock cylinders.
High pressure and return line filters.
Bolted container rests
22 t maximum lifting capacity.
Telescopic & articulated hook arm.
6175 mm unit length.
Hydraulic rear bin locks (outside locking only) - Rail width 1060 mm.
Anti-buckling system (fuse on tipping frame locking).
Pneumatic safety hook.
Oil tank.
Painted RAL 9005 - Black.
Fitted to chassis; including mudguards, rear bumper, manufacturer’s tail lights, and clearance lights.


FEATURES

ADR 80/04 (Euro VI) Compliant
Adaptive Driving Beam (ADB)
Bi-LED Headlamps with Daytime Running Lamps (DRL)
Electronic Stability Control (ESC)
Full Speed Adaptive Cruise Control (FACC)
ISRI 6860/875 NTS2 Air Suspension Driver's Seat
Lane Departure Warning (LDW)
Lane Keeping Assist (LKA)

CHASSIS

Front Axle Capacity: 14,600 kg
Rear Axle Capacity: 20,000 kg
Fuel Tank: 400 L Aluminium
AdBlue Tank: 28 L High-Density Polyethylene
1st Steer Axle Tyres: 295/80R22.5 152/148M Michelin X Multi Z2
2nd Steer Axle Tyres: 295/80R22.5 152/148M Michelin X Multi Z2
Rear Axle Tyres: 11R22.5 148/145L Michelin

CABIN

Automatic Climate Control
ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation
10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with Daytime Running Lamps (DRL)
LED Front Fog Lamps
LED Tail Lamps
Reverse Alarm

WARRANTY & SERVICE

Chassis Warranty: 6 Years / 600,000 km / 10,000 Engine Hours
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km
