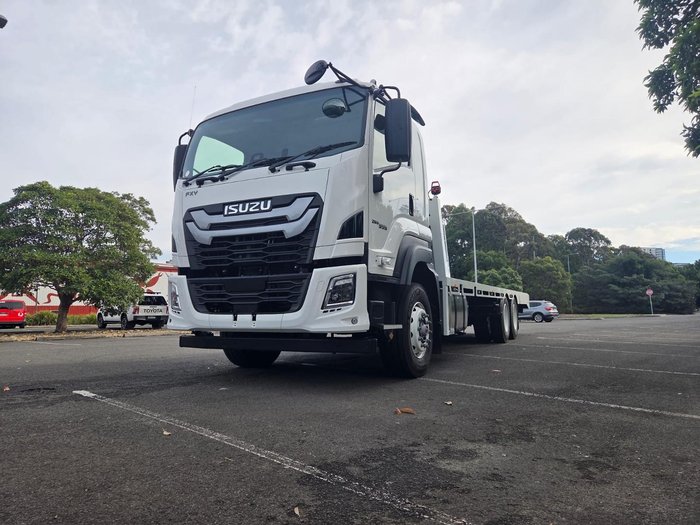

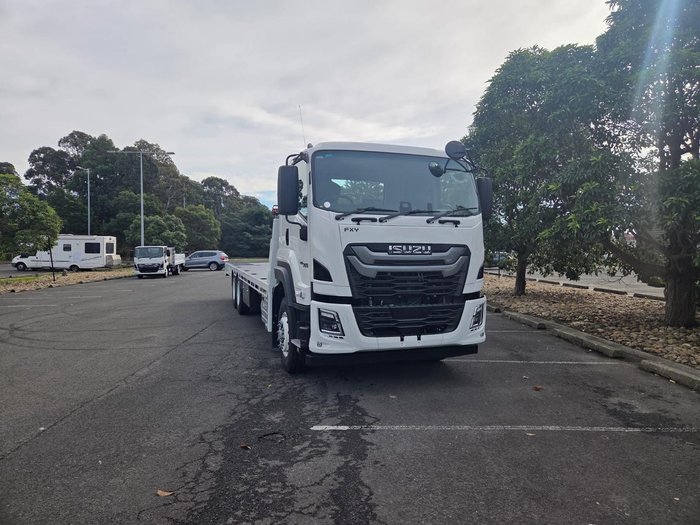

2025 Isuzu FX Series

Isuzu FXY 260-355 AT R63

Engine: Isuzu 6UZ1-TCC | 9.8L 6 Cylinder Turbo Diesel
Transmission: 6 speed Allison AUTO 3500 GEN 6

Power: 355 Hp | 259 kW @ 2000 RPM
Torque: 1437 Nm @ 1400 RPM

Weight Rating: GVM: 26,000 Kg GCM: 45,000 Kg
Wheelbase: 6,300 mm
Drive Type: 6x4
Suspension Hendrickson HAS461Airbag Suspension.

HTE POWERTAIL – HEAVY DUTY SPECIFICATION
Deck & Dimensions
• 6900mm Main Deck Length
• 2200mm Usable Hydraulic Ramp
• 9150mm Overall Body Length
• 2490mm Overall Body Width
• 1120mm Deck Height
Deck Construction
• Heavy-Duty 5mm High Tensile Wear Plate Deck
• Reinforced chassis-mounted construction
• 16 x Heavy-Duty Chain Keyholes integrated into deck
• Designed for demanding transport and loading applications
Hydraulic Ramps
• 2000mm Hydraulic Extendable Ramps
• Hydraulic operation for controlled deployment and retraction
• Heavy-duty construction suitable for plant and machinery loading
Hydraulic & Electrical System
• Electric Hydraulic Power Pack
• Full Remote-Control Operation
• Integrated hydraulic controls for Powertail and ramp operation
• Heavy-duty electrical installation
Lighting
• LED Rear Taillights
• 2 x LED Work Lights mounted to Headboard
• 2 x LED Taillights mounted to Headboard
Storage
• Lockable Underbody Toolbox
• Approx. 1200mm L x 500mm D x 500mm W
• Secure storage for chains, straps and associated equipment
Compliance
• Body engineered and constructed to comply with applicable NHVR requirements
• Designed with consideration to relevant Australian heavy vehicle dimensional, loading and safety requirements



Please enquire for further body details
ISUZU FXY 260-355 AT R63

Heavy Duty 6x4 Cab Chassis

VEHICLE OVERVIEW

Model: FXY 260-355 AT R63
GVM: 26,000 kg
GCM: 45,000 kg
Wheelbase: 6,300 mm
Engine: Isuzu 6UZ1-TCC 6 Cylinder Turbo Diesel
Power: 259 kW @ 2,000 rpm
Torque: 1,437 Nm @ 1,400 rpm
Transmission: Allison 4430 GEN 6 6-Speed Automatic Transmission (AT)

HTE POWERTAIL – HEAVY DUTY SPECIFICATION

Deck & Dimensions
• 6900mm Main Deck Length
• 2200mm Usable Hydraulic Ramp
• 9150mm Overall Body Length
• 2490mm Overall Body Width
• 1120mm Deck Height
Deck Construction
• Heavy-Duty 5mm High Tensile Wear Plate Deck
• Reinforced chassis-mounted construction
• 16 x Heavy-Duty Chain Keyholes integrated into deck
• Designed for demanding transport and loading applications
Hydraulic Ramps
• 2000mm Hydraulic Extendable Ramps
• Hydraulic operation for controlled deployment and retraction
• Heavy-duty construction suitable for plant and machinery loading
Hydraulic & Electrical System
• Electric Hydraulic Power Pack
• Full Remote-Control Operation
• Integrated hydraulic controls for Powertail and ramp operation
• Heavy-duty electrical installation
Lighting
• LED Rear Taillights
• 2 x LED Work Lights mounted to Headboard
• 2 x LED Taillights mounted to Headboard
Storage
• Lockable Underbody Toolbox
• Approx. 1200mm L x 500mm D x 500mm W
• Secure storage for chains, straps and associated equipment
Compliance
• Body engineered and constructed to comply with applicable NHVR requirements
• Designed with consideration to relevant Australian heavy vehicle dimensional, loading and safety requirements

Please enquire for further body details

FEATURES

ADR 80/04 (Euro VI) Compliant
Adaptive Driving Beam (ADB)
Bi-LED Headlamps with Daytime Running Lamps (DRL)
ECE-R29 Cab with Side Anti-Intrusion Beams
ISRI 6860/875 NTS2 Air Suspension Driver's Seat
Engine Compression Brake (Exhaust Brake)

CHASSIS

Front Axle Capacity: 7,300 kg
Rear Axle Capacity: 20,000 kg
Fuel Tank: 400 L Aluminium
AdBlue Tank: 28 L High-Density Polyethylene
Front Axle Tyres: 315/70R22.5 Michelin X MULTI ENERGY Z2
Rear Axle Tyres: 11R22.5 Michelin X MULTI D+

CABIN

Auto Climate Control
ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation
10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with Daytime Running Lamps (DRL)
LED Front Fog Lamps
LED Tail Lamps
Reverse Alarm

WARRANTY & SERVICE

Chassis Warranty: 6 Years / 600,000 km / 10,000 Engine Hours
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km
