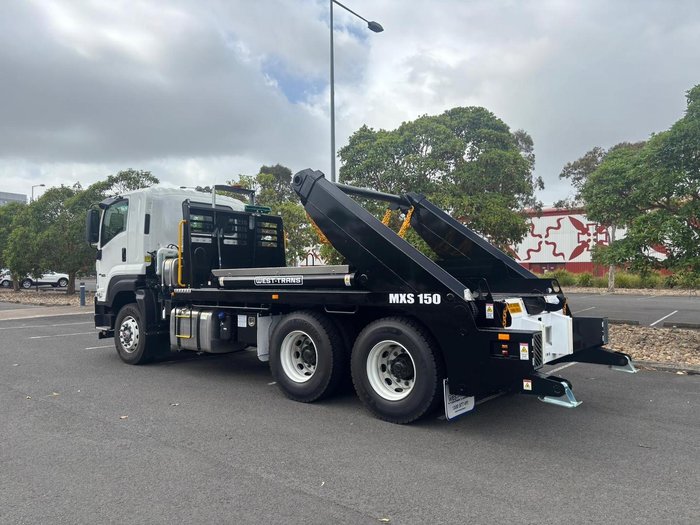

2025 Isuzu FX Series

ISUZU FXY 260-355 AT R45

Heavy Duty 6x4 Cab Chassis

VEHICLE OVERVIEW

Model: FXY 260-355 AT R45
GVM: 26,000 kg
GCM: 45,000 kg
Wheelbase: 4,540 mm
Engine: Isuzu 6UZ1-TCC 6 Cylinder Turbo Diesel
Power: 259 kW @ 2,000 rpm
Torque: 1,437 Nm @ 1,400 rpm
Transmission: Allison 4430 GEN 6 6-Speed Automatic Transmission (AT)

WEST TRANS MXS-150

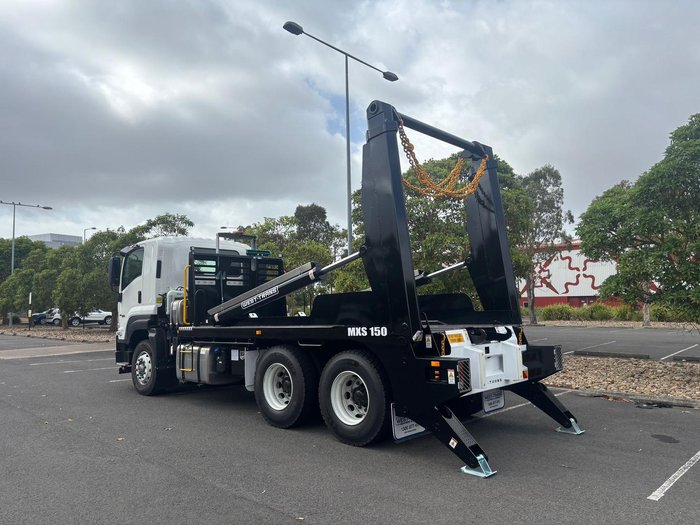

MXS 150 Telescopic arm Skip Loader, 5000mm Deck Length
2 points of entry at front of the deck with 3 point contact and anti-slip protection
Lifting chains and tipping chains, supplied with latch lock safety hooks on both lifting and tipping
chains.
Covers over main lifting cylinders, valve, and over rear tail lights. Nylon Rear bump stops
Steel Tipping Hooks Included
5mm steel deck
Black 2 pack paint
External manual controls on driver’s side
Radio Control
600mm x 450mm x 450mm Black Underbody Toolbox
15 litre plastic water tank with soap dispenser
Dual LED work lights on load board
Single Narva LED Slimline beacon
Broom Holder & Shovel Holder

FEATURES

ADR 80/04 (Euro VI) Compliant
Adaptive Driving Beam (ADB)
Bi-LED Headlamps with Daytime Running Lamps (DRL)
ECE-R29 Cab with Side Anti-Intrusion Beams
ISRI 6860/875 NTS2 Air Suspension Driver's Seat
Engine Compression Brake (Exhaust Brake)

CHASSIS

Front Axle Capacity: 7,300 kg
Rear Axle Capacity: 20,000 kg
Fuel Tank: 400 L Aluminium
AdBlue Tank: 28 L High-Density Polyethylene
Front Axle Tyres: 315/70R22.5 Michelin X MULTI ENERGY Z2
Rear Axle Tyres: 11R22.5 Michelin X MULTI D+

CABIN

Auto Climate Control
ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation
10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with Daytime Running Lamps (DRL)
LED Front Fog Lamps
LED Tail Lamps
Reverse Alarm

WARRANTY & SERVICE

Chassis Warranty: 6 Years / 600,000 km / 10,000 Engine Hours
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km
