2025 Isuzu F Series

Isuzu FXY 260-355 AT R63 Stock Crate Truck

Built for serious livestock transport operations, this Isuzu FXY 260-355 AT R63 combines a powerful 355 PS six-cylinder turbo-diesel engine, Allison automatic transmission, Hendrickson rear airbag suspension and a professionally manufactured 29-foot Duncan single-deck cattle crate.

With a 26,000 kg GVM, tandem-drive rear axles, cross-locking differentials, advanced safety technology, a heavy-duty livestock tray and a genuine Bartlett sliding towbar, this truck is well suited to livestock carriers, farmers, transport operators and rural contractors.

Engine & Performance
- Engine: Isuzu 6UZ1-TCC six-cylinder turbo-diesel
- Displacement: 9.839 litres
- Maximum power: 259 kW / 355 PS at 2,000 rpm
- Maximum torque: 1,437 Nm at 1,400 rpm
- Electronically controlled variable-nozzle turbocharger
- Air-to-air intercooler
- High-pressure common-rail direct fuel injection
- Air-controlled exhaust brake
- ADR 80/04 Euro VI emissions compliant
- Exhaust Gas Recirculation
- Selective Catalytic Reduction
- Diesel Particulate Diffuser
- 400-litre lockable aluminium diesel tank
- 28-litre AdBlue tank
- Typical geared road speed of approximately 110 km/h at peak power
- Engine speed of approximately 1,812 rpm at 100 km/h
- Calculated low-speed gradeability of approximately 23% at 26,000 kg GVM

Transmission & Driveline
- Allison 4430 GEN 6 six-speed automatic transmission
- Fully automatic operation for reduced driver fatigue
- Six forward speeds and reverse
- Power Take-Off facility with left-hand and top openings on the transmission bellhousing
- Engine-driven PTO drive gear
- Tandem-drive rear axle configuration
- Inter-axle differential lock
- Cross locks fitted to both rear axles
- Rear axle ratio: 5.285
- Full-Speed Adaptive Cruise Control
- Electronic Stability Control
- Anti-Skid Regulator traction control

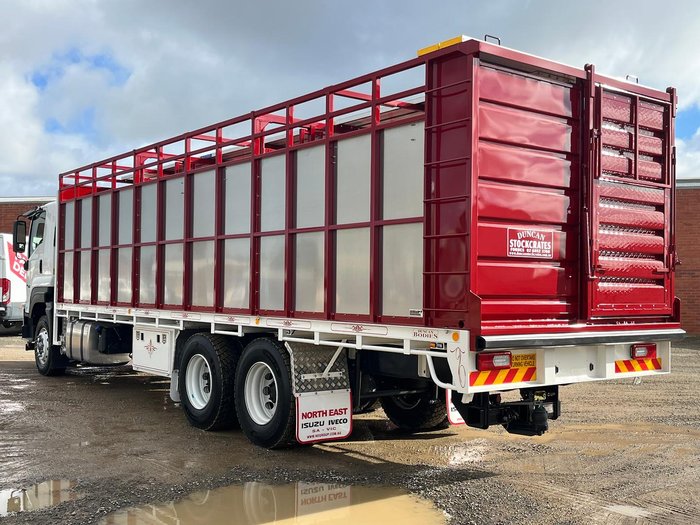

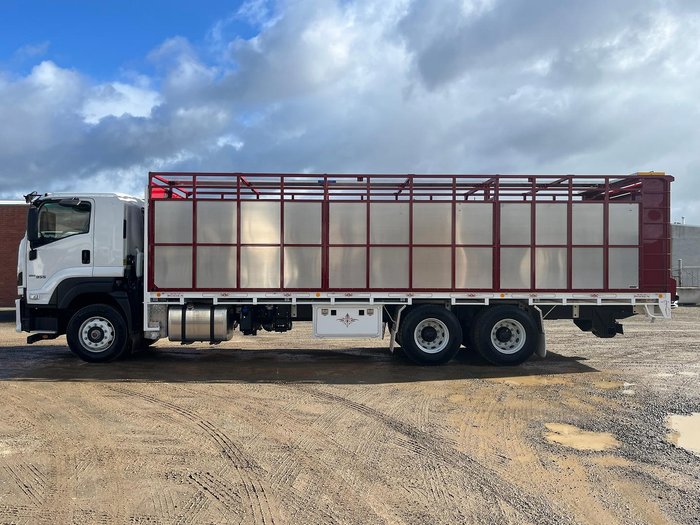

Duncan Single-Deck Cattle Crate
- The truck is fitted with a new Duncan 29-foot single-deck cattle crate, designed and manufactured specifically for livestock transportation.
- Crate length: 8,840 mm
- Crate width: 2,485 mm
- Crate height: 2,000 mm
- Three equal-length livestock pens
- Three-quarter foldaway cattle gates at the centre dividers
- Gates allow longer pen configurations in either pen when required

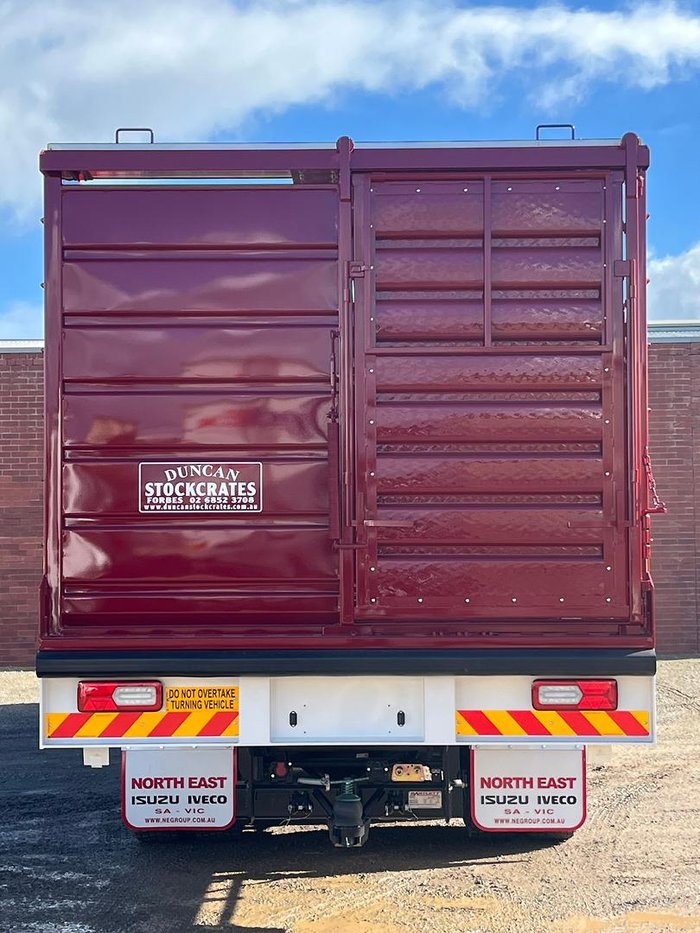

- Slide-and-drop rear door
- Spring-assisted rear door for easier lifting and operation
- Pressed aluminium treadplate insert fitted to the rear door
- Internally clad with 1,500 mm × 4 mm high-tensile aluminium sheeting
- Two-plank-wide aluminium catwalk
- Rear built-in ladders providing access to the catwalk
- Heavy-duty floor grids attached to the base of the crate
- Rear bumper protection rubber
- LED interior lighting
- Set of four stock-crate unloading legs
- Crate fully sandblasted before painting
- One coat of two-pack epoxy primer
- Two coats of Australian Standard two-pack topcoat
- Stock-crate topcoat available in the selected colour

Duncan Heavy-Duty Truck Tray
- The cattle crate is mounted on a new Duncan 29-foot truck tray manufactured specifically to suit the Isuzu FXY cab chassis.
- Tray length: 8,850 mm
- Tray width: 2,485 mm
- Headboard extending 1,800 mm above the coaming rail
- 100 × 50 mm channel coaming rails
- Approximately 40 mm floor depth
- Heavy-duty 5 mm fully sealed steel chequer-plate floor
- Folded aluminium mudguards
- Sealed rear floor drains
- Aluminium effluent tank positioned at the front left-hand corner
- Fuel filter relocated to the rear of the effluent tank where required
- LED side-clearance and indicator lights
- Original Isuzu LED rear combination lights retained
- Rear car bar designed for installation of the Bartlett towbar
- ADR-compliant rear warning signs
- Single-door drop-down toolbox
- Single-door drop-down dog box
- 70-litre plastic water tank
- Tray fully sandblasted before painting
- One coat of two-pack epoxy primer
- Two coats of Australian Standard two-pack topcoat in Isuzu White
- Tray lined and scrolled to complement the colour of the stock crate
- Engineer’s VSCCS certification for the tray and towbar mounting

Genuine Bartlett Towbar
- Genuine Bartlett sliding towbar
- Mounted at the rear of the truck
- Heavy-duty 127 mm tow ball
- In-cab electrical switch for operation of the sliding drawbar
- Two standard sealed air trailer connectors
- Seven-pin round metal electrical socket
- Designed for livestock trailer and rural transport applications

Weight Ratings
- GVM: 26,000 kg
- GCM: 45,000 kg
- Front axle loading limit: 7,300 kg
- Rear tandem loading limit: 20,000 kg

Dimensions
- Wheelbase: 6,300 mm
- Cab chassis overall length: 11,100 mm
- Front overhang: 1,480 mm
- Rear overhang: 3,280 mm
- Cab-to-rear-axle measurement: 5,624 mm
- Rear axle spread: 1,310 mm
- Overall cab width: 2,490 mm
- Rear track: 1,840 mm
- Overall rear tyre width: 2,450 mm
- Unladen cab height: 2,978 mm
- Unladen front frame height: 1,012 mm
- Unladen rear frame height: 1,030 mm
- Unladen end frame height: 1,037 mm
- Turning circle kerb-to-kerb: 24.2 metres

Suspension, Steering & Brakes
- Electro-hydraulic power-assisted recirculating-ball steering
- Approximately 3.70 turns lock-to-lock
- Front single-stage steel taper-leaf suspension
- Double-acting hydraulic front shock absorbers
- Front stabiliser bar
- Hendrickson HAS461 rear airbag suspension
- Rear suspension capacity: 21,000 kg
- Full-air disc brakes
- Electronic Braking System
- Spring-applied park brake acting on all rear wheels
- Front and rear brake disc diameter: approximately 434 mm
- 22.5-inch ISO ten-stud steel wheels
- Michelin front and rear tyres

Axles & Traction
- Meritor MFS73 front axle
- Reverse Elliott I-beam front axle design
- Front axle capacity: 7,300 kg
- Tandem-drive rear axle assembly
- Rear axle capacity: 20,000 kg
- Inter-axle differential lock
- Cross locks fitted to both rear axles
- Designed to provide improved traction on farms, livestock yards and unsealed rural roads

Advanced Safety Technology
- The FXY is equipped with Isuzu’s comprehensive suite of active and passive safety systems, including:
- Advanced Emergency Braking
- Adaptive Driving Beam
- Anti-lock Braking System
- Anti-Skid Regulator
- Electronic Stability Control
- Forward Collision Warning
- Full-Speed Adaptive Cruise Control
- Lane Departure Warning
- Lane Keeping Assist
- Distance Warning System
- Traffic Movement Warning
- Traffic Sign Recognition
- Intelligent Speed Limiter
- Customisable Speed Limiter
- Cab Tilt Warning
- Automatic Lighting System
- Driver and front passenger airbags
- Driver and front passenger seatbelt pretensioners
- ECE-R29 cab with side and anti-intrusion beams
- Overhead shelf restraint netting
- Reverse alarm

Cab Comfort & Technology
- ISRI 6860/875 NTS2 air-suspension driver’s seat
- Automatic climate-control air conditioning
- Rear coil-spring cab mounting with hydraulic shock absorbers
- Electro-hydraulic cab tilt
- ADR42-compliant sleeper space
- Rear cabin storage
- Passenger bench seat with folding seatback and storage compartment
- Tilt and telescopic steering column
- Full-Speed Adaptive Cruise Control
- Heated and electrically operated exterior mirrors
- LED headlights with Adaptive Driving Beam
- LED daytime running lamps
- LED fog lamps
- LED roof-mounted clearance lamps
- Heavy-duty anti-slip entry steps
- Automatic windscreen wet-wiper system
- Central locking and immobiliser
- 24-volt power outlet
- Overhead storage, cup holders and door pockets
- Steering-wheel-mounted display, audio and phone controls

MyIsuzu Co-Pilot Multimedia Unit
- 10.1-inch high-definition touchscreen
- Truck-tailored satellite navigation
- Live traffic information
- Map-content updates
- Wired Apple CarPlay
- Wired Android Auto
- AM/FM and DAB+ radio
- Bluetooth phone connectivity
- USB socket
- Wi-Fi connectivity
- 32 GB internal storage

Isuzu Warranty & Support
- Six-year standard factory chassis warranty
- Coverage up to 600,000 km or 10,000 engine hours, subject to Isuzu’s warranty conditions
- Six years of 24/7 roadside assistance
- Unlimited-kilometre roadside assistance during the applicable coverage period
- Three-year warranty on genuine Isuzu parts and accessories when installed by an approved Isuzu Trucks dealership
- Nationwide Isuzu dealer, service and parts network
- Service intervals of up to 25,000 km, 12 months or 500 operating hours, whichever occurs first

Why Buy from Auto Group ?

When you purchase through Auto Group , you receive more than just a truck. Our team can assist throughout the complete ownership process, including:

- Professional advice to ensure the truck and livestock body suit your operating requirements
- Assistance with finance, registration and delivery arrangements
- Dedicated customer service before, during and after delivery
- Experienced workshop technicians and ongoing aftersales support
- Access to genuine Isuzu parts and accessories
- Reliable parts supply to help minimise vehicle downtime
- Support through Isuzu’s extensive national dealer network
- Multiple Auto Group locations, including three branches across Adelaide, as well as , and the Sunshine Coast

Contact Auto Group today for pricing, availability and further information, and make this truck your today!
