2025 Isuzu F Series

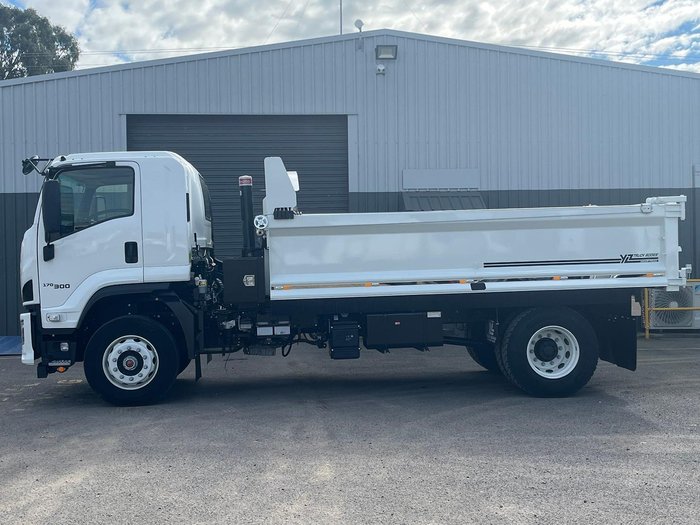

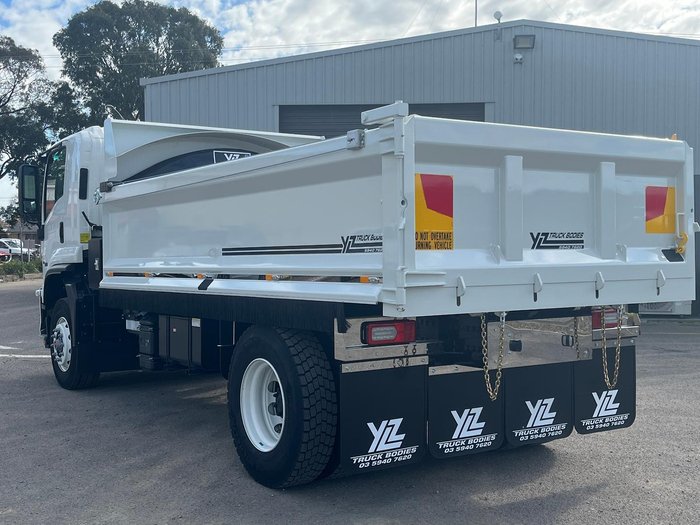

Brand New Isuzu FVR 170-300 AT R47 – YLZ Steel Tipper

Introduction
- Brand new Isuzu FVR 170-300 AT R47 4x2, professionally fitted with a heavy-duty YLZ council-style steel tipper body.
- Built around Isuzu’s proven F Series platform, this truck combines a powerful 300 PS-class engine, Allison automatic transmission, 17,000 kg GVM and a robust steel tipper setup.
- Well suited to civil works, construction, landscaping, council operations, earthmoving support, maintenance contractors and general tipping applications.
- The R47 configuration provides a compact 4,660 mm wheelbase, making it a practical choice where manoeuvrability is important without sacrificing carrying capacity.
- Finished with a purpose-built YLZ tipper body featuring an approximately 8.0 m³ capacity, front-mounted Binotto hoist, electric tarp, two-way tailgate and a comprehensive range of work-ready body equipment.

Engine & Performance
- Powered by the Isuzu DB6A-TCC 6-cylinder turbo-diesel engine.
6,690 cc displacement.
- Produces 221 kW of power at 2,200 rpm.
- Strong 984 Nm of torque available from just 1,000 through to 2,100 rpm, providing excellent low-speed pulling power for loaded applications.
- Electronically controlled variable-geometry turbocharger with air-to-air intercooler.
- Direct-injection high-pressure common-rail fuel system.
- ADR 80/04 Euro VI emissions compliant.
- SCR Selective Catalytic Reduction and DPD Diesel Particulate Diffuser emissions systems.
- Isuzu I-Brake engine compression brake provides additional braking assistance on descents and when operating under load.

Automatic Transmission
- Allison 3000 Gen 6 fully automatic transmission.
- 6 forward speeds for smooth and straightforward operation in both urban and regional environments.
- Automatic transmission helps reduce driver workload, particularly in stop-start worksite and tipper applications.
- PTO provisions incorporated into the transmission for operation of the hydraulic tipping system.
- Engine-driven PTO drive gear.
- Designed to provide smooth power delivery and make the truck easy to operate for drivers across a wide range of experience levels.

Weights & Dimensions
- GVM: 17,000 kg.
- GCM: 32,000 kg.
- Front axle loading limit: 7,300 kg.
- Rear axle loading limit: 10,400 kg.
- Nominal cab chassis weight: 5,561 kg.
- Wheelbase: 4,660 mm.
- Cab chassis overall length: 8,005 mm.
- Cab-to-axle dimension: 3,675 mm.
- Overall cab chassis width: approximately 2,450 mm.
- Kerb-to-kerb turning circle: approximately 16.6 metres.
- 200-litre steel diesel fuel tank on the R47 configuration.
- 65-litre AdBlue tank.

YLZ Steel Tipper Body
- Professionally manufactured and fitted by YLZ Truck Bodies.
- Council-style mild-steel tipping body specifically configured for the Isuzu FVR.
- Approximately 4,600 mm body length.
- Approximately 2,250 mm body width.
- Approximately 800 mm body wall height.
- Approximately 8.0 m³ body capacity.
- Weld-mounted steel body construction.
- Heavy-duty RHS subframe.
- 50 mm, 4140-grade rear pivot arrangement with hardened 1020-grade steel bushes.
- Body finished in Isuzu White.
- Subframe/chassis contour finished in Gloss Black.
- Epoxy primed with high-fill primer and finished in a durable 2K PPG paint system.
- YLZ advises the vehicle should utilise a front-mounted hoist configuration.

Tipping System & Hydraulics
- Italian-manufactured Binotto 3-stage tipping hoist.
- 28-tonne rated hoist capacity.
- Front-mounted hoist arrangement.
- In-dash OEM-style tipping controls for convenient operation from the cab.
- Gearbox-driven PTO arrangement.
- OMFB hydraulic pump.
- Split and supply hydraulic system.
- Approximately 135-litre hydraulic tank.
- Hydraulic tank positioned at the centre-front of the subframe.
- Hose burst valve incorporated into the hydraulic system.
- VASS certification included as part of the body installation.
- Tailgate, Tarp & Body Equipment

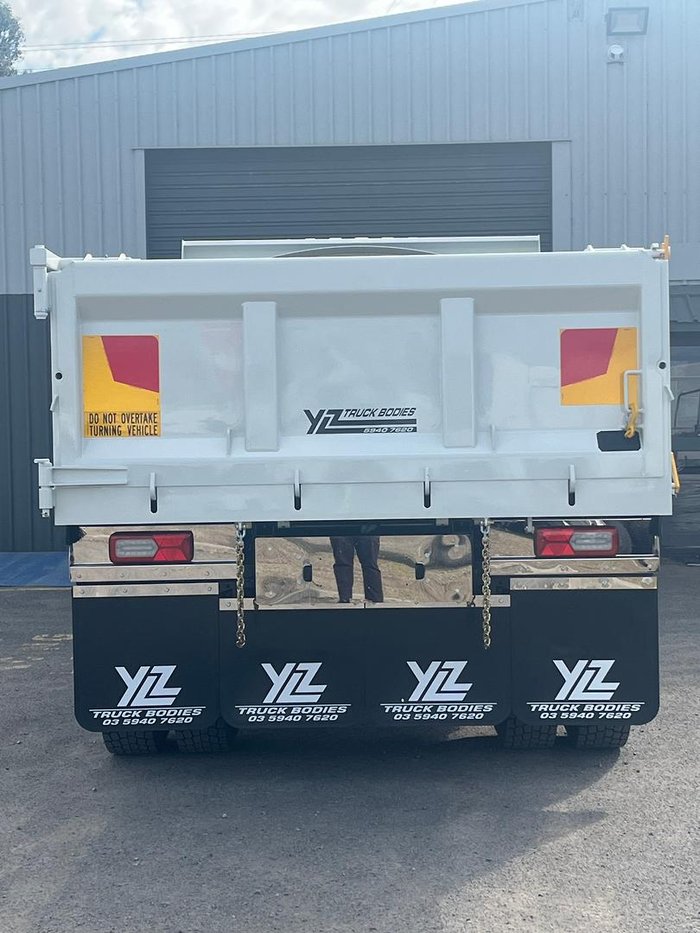

- Heavy-duty two-way tailgate.
- Air-operated tailgate release.
- Electric PVC Razor tarp system with electric Razor motor.
- Approximately 4,200 mm tarp length.
- Full set of rear mudflaps with four mudflaps across the rear.
- Five LED side marker lights fitted per side with polished stainless-steel backing strips.
- OEM tail lamps retained with stainless-steel quarter guards.
- Rear CAT marker arrangement.
- Reverse buzzer/squawker.
- Anti-spray suppressant fitted along both sides of the body.
- Underbody shovel holder.
- Driver-side front access arrangement.
- Three-step pull-out ladder with rungs for easier body access.

Chassis & Running Gear
- 4x2 FVR configuration.
- Electric power steering.
- Heavy-duty HT540 steel rivetless bolted ladder-frame chassis.
- Single-stage steel taper-leaf front suspension with hydraulic shock absorbers and stabiliser bar.
- Multi-leaf rear main springs with multi-leaf helper springs and stabiliser bar.
- Meritor MFS73 front axle.
- Meritor MS-11-165 single-drive rear axle.
- 6.142 rear axle ratio.
- Full-air disc Electronic Braking System.
- 434 mm front and rear disc brakes.
- Spring park brake acting on all rear wheels.
- Michelin commercial tyres fitted as standard specification.

Isuzu Safety Technology
- Advanced Emergency Braking.
- Electronic Stability Control.
- Anti-lock Braking System.
- Anti-Slip Regulator.
- Full-speed Adaptive Cruise Control.
- Lane Departure Warning.
- Lane Keeping Assist.
- Forward Collision Warning.
- Distance Warning System.
- Traffic Movement Warning.
- Traffic Sign Recognition.
- Intelligent Speed Limiter.
- Customisable Speed Limiter.
- Adaptive Driving Beam.
- Automatic Lighting System.
- Cab Tilt Warning.
- ECE-R29 compliant cab with side anti-intrusion beams.
- Driver and front outboard passenger SRS airbags.
- Driver and front outboard passenger seatbelt pretensioners.

Driver Comfort & Cabin
- ISRI 6860/875 NTS2 air-suspension driver's seat.
- Heated and ventilated driver's seat.
- Automatic climate-control air conditioning.
- Passenger bucket seat plus centre seat with folding seatback and storage compartment.
- ADR42-compliant sleeper space behind the seats.
- Tilt and telescopic adjustable steering column.
- Heated and powered exterior mirrors with additional convex spot mirrors.
- Passive Entry and Start System with remote central locking and immobiliser.
- Heavy-duty anti-slip access steps.
- Automatic windshield wiper system.
- Bi-LED headlamps with Adaptive Driving Beam and daytime running lamps.
- LED front fog lamps, roof clearance lamps and tail lamps.

MyISUZU Co-Pilot & Connectivity
- 10.1-inch high-definition capacitive touchscreen.
- Android Automotive operating system.
- Truck-specific GPS navigation.
- Live traffic and map content updates via smartphone link.
- AM/FM/DAB+ radio.
- Wired Apple CarPlay and Android Auto compatibility.
- USB connectivity.
- Wi-Fi connectivity.
- Steering-wheel-mounted multimedia, phone, ADAS and Multi Information Display controls.
- Comprehensive driver information display incorporating vehicle and safety-system alerts.

Isuzu Service Agreements & Maintenance
- Protect your investment with a range of Isuzu service agreement options, including Isuzu Essentials, Isuzu Essentials Plus and Isuzu Total.
- Isuzu Total is the most comprehensive service package available for new Isuzu trucks.
- Depending on the selected agreement, scheduled maintenance can cover items such as fault-code checks, wheel-bearing servicing and lubrication, belts and coolant hoses, wiper blades, electrical components, engine and transmission components, brakes, suspension, consumables and labour.
- Regular servicing by trained technicians can help keep the truck operating reliably, identify developing issues earlier and contribute to improved vehicle longevity and uptime.
- Scheduled service interval is 25,000 km, 12 months or 500 operating hours, whichever occurs first.
- Backed by access to Isuzu's national dealer service and support network.
- Service agreement options can provide greater predictability around scheduled maintenance and help businesses plan vehicle operating costs and downtime.

Warranty & Roadside Support
- Isuzu 6-year standard chassis warranty.
- Coverage up to 500,000 km or 8,000 engine hours, subject to Isuzu warranty conditions.
- 6 years of Isuzu Roadside Support.
- 24/7 roadside assistance with unlimited kilometres.
- Isuzu Genuine Parts and Accessories are supported by a 3-year standard warranty when installed by an approved Isuzu Trucks dealership, including labour, subject to applicable conditions.

Why Buy From
- Deal with a dedicated truck sales team that understands commercial vehicles and can help match the truck specification to your particular application.
- Ongoing customer support does not finish when the truck leaves the dealership.
- Access to aftersales support for servicing, maintenance, warranty and genuine Isuzu parts.
- Support in arranging scheduled servicing and Isuzu service agreements to help maximise vehicle uptime and long-term reliability.
- Backed by Isuzu's extensive national dealer network, providing additional support when your truck is working away from home.
- Assistance with truck specifications, body requirements and application suitability throughout the purchase process.
- Access to Isuzu-trained service support and genuine parts to help keep your truck performing as intended.
- A complete truck solution combining a proven Isuzu F Series chassis with a professionally fitted YLZ steel tipper body.
