2026 Isuzu N Series

ISUZU NKR 65/45-150 DT D34

Light Duty Cab Chassis


VEHICLE OVERVIEW

Model: NKR 65/45-150 DT D34
GVM: 6,500 kg / 4,500 kg
GCM: 8,000 kg
Towing Capacity: 4,000 kg
Wheelbase: 3,360 mm
Engine: Isuzu 4JZ1-TCS 4 Cylinder Turbo Diesel
Power: 110 kW @ 2,800 rpm
Torque: 375 Nm @ 1,280 - 2,800 rpm
Transmission: 9-Speed Dual Clutch Transmission (DT)

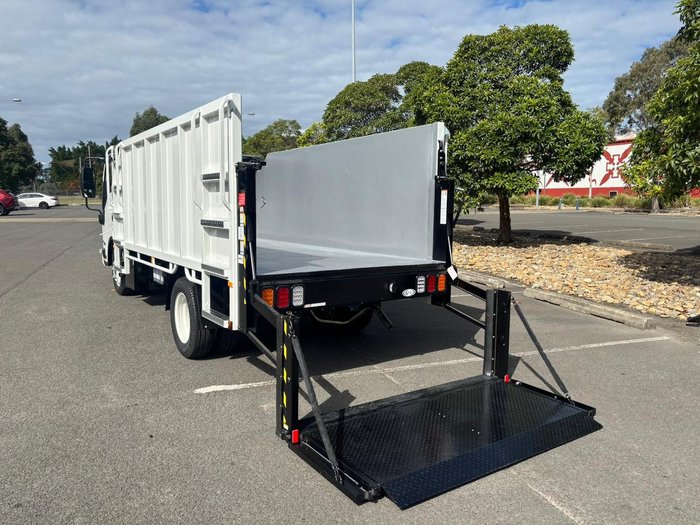

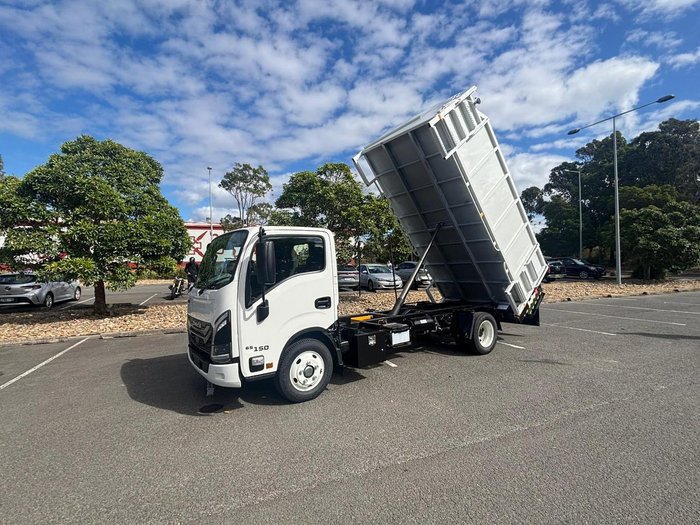

M & M Truck Bodies Custom Tipper Body
• 3700mm Internal Length
• 1800mm Internal Width
• 1081mm Side Approx
• 2000mm Overall Height
• 4 x In Built Ladders with Step
• Tommy Gate ( Lift & Dump)
· Tarp · Mounted to inside of Headboard Notched out into sides (Not to be higher than Tipper Body)
- 2 x Toolboxes•1 on each side of the Body
• Broom & shovel Holders

FEATURES

ADR 80/04 (pPNLT) Compliant
Bi-LED Headlamps with Daytime Running Lamps (DRL)
Electric Park Brake (EPB) with Auto Brake Hold
ECE-R29 Cab with Side Anti-Intrusion Beams


CHASSIS

Front Axle Capacity: 2,600 kg
Rear Axle Capacity: 5,000 kg
Fuel Tank: 100 L Steel
AdBlue Tank: 14 L High-Density Polyethylene
Front Axle Tyres: 205/75R16C 113/111R Michelin
Rear Axle Tyres: 205/75R16C 113/111R Michelin


CABIN

Auto Climate Control
10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with LED Daytime Running Lamps (DRL)
LED Tail Lamps
Reverse Alarm


WARRANTY & SERVICE

Chassis Warranty: 6 Years / 250,000 km / Unlimited Hours
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km
