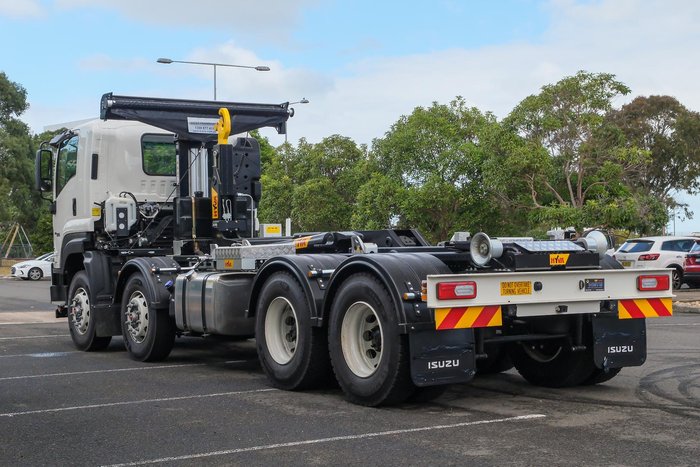

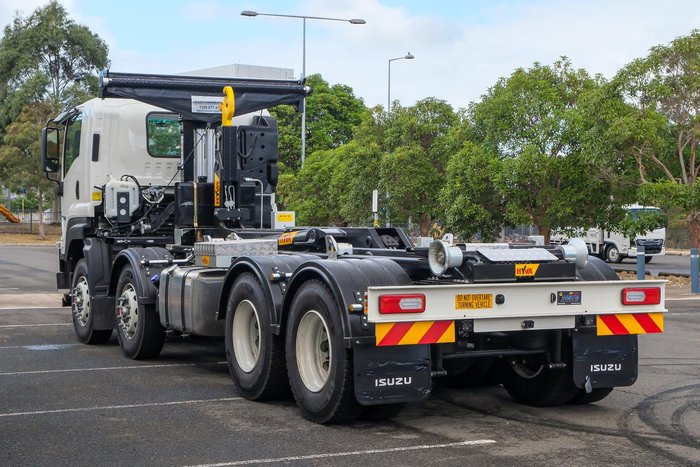

2025 Isuzu F Series

Isuzu FYJ 320-355 AT R60

Engine: Isuzu 6UZ1-TCC | 9.8L 6 Cylinder Turbo Diesel
Transmission: 6 speed Allison Automatic 4430 GEN 6
Power: 355 Hp | 259 kW @ 2000 RPM
Torque: 1437 Nm @ 1400 RPM
Weight Rating: GVM: 32,000 Kg GCM: 45,000 Kg
Wheelbase: 6,010 mm
Drive Type: 8x4


Hook Lift Model:

Hyva Lift 20-57 SK TE
? Capacity 20 Tonne
? System length 5700mm
? Fitted weight of 2775kg
? To suit bin rails of 850mm (inside) - 1070mm (outside)
? To suit bin lengths of 3550-6800 mm.
? High Strength Hardox and Weldox Steel frame with a low height of 250mm from bottom of
frame to where the bin sits. Ensures low centre of gravity for the bin.
? Combi Lock hydraulic reversible rear bin locking
? Manually adjustable 2 height pick up hook 1450 & 1570 mm.
? Rollers on the midsection of the Frame to allow for Smooth and quiet container (un)loading
? Front Mounted Steel Hydraulic Oil tank 81 Litre Capacity with return filter and breather.
? Warning Lights for Body Raised and Rear Locks
? LED Side Marker lights fitted
? Air operated in cab lever Controls with 4 functions – Sliding Neck, Bending Neck, Tipping
Frame and Rear Locks.
? Space for Optional Electro/Hydraulic Hyva tarp system to be fitted.
? Equipment Painted in Black colour with yellow pick-up hook.
? PTO & Piston Pump
? Rear Bar with Lights and marker boards fitted
? Plastic single mudguards to 2nd steer and Rear Axles
? Full local pre delivery check/service, load test before unit is delivered to customer.
? Compliance certificate and Handover/Familiarisation Training to operators
West Trans tarping system

Intelligent Safety Features:

Advanced Emergency Braking (AEB)
Adaptive Driving Beam (ADB)
Anti Lock Braking System (ABS)
Anti Skid Regulator (ASR)
Attention Alert System (AAS)
Auto Lighting System (ALS)
Cab Tilt Warning (CTW)
Customisable Speed Limiter (CSL)
Distance Warning System (DWS)
Electronic Stability Control (ESC)
Forward Collision Warning (FCW)
Full Speed Adaptive Cruise Control (FACC)
Intelligent Speed Limiter (ISL)
Lane Departure Warning (LDW)
Lane Keeping Assist (LKA)
Traffic Movement Warning (TMW)
Traffic Sign Recognition (TSR)

Standard Features

ECE-R29 Cab with Side Anti-Intrusion Beams
Driver and Front Passenger Airbags
Driver and Front Passenger Seatbelt Pretensioners
Door Mounted Cornering Lamps
Overhead storage compartments with doors
ADR 80/04 (Euro VI) compliant
SCR (Selective Catalytic Reduction)
DPD (Diesel Particulate Diffuser)
Engine Compression Brake (I-Brake)
Isri 6860/875 NTS2 Air Suspension Driver's Seat
Bi-LED Headlamps with Daytime Running Lamps
MyISUZU Co-Pilot Audio Visual Unit
Electro-hydraulic cab tilt to 45 degrees
Heated & powered exterior main mirrors
with flat glass and additional independently
adjustable convex spot mirrors
Auto windshield wiper system, wet wipers
Adaptive Driving Beam (ADB) and Daytime Running Lamps
LED tail lamps
Front LED foglamps
Passive Entry and Start System (PESS) with
remote Central locking and Immobiliser
Air Conditioning Auto control

Warranty:
6 Year Standard Warranty | 600,000 Km | 10,000 Hours (Whichever Comes First)

Roadside Assistance:
6 Year Roadside Support 24/7 | Unlimited Km
Servicing package tailor made to suit customer application available upon request

Please Note: Warranty period may differ depending on harsh application (4x4, AWD, Agitator, Compactor, etc.)
