2025 Isuzu F Series

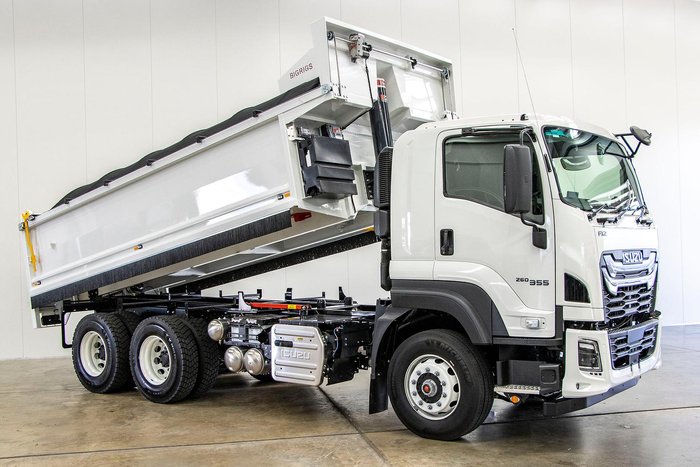

The Isuzu FXZ 260-355 AT R45 is a heavy-duty 6x4 powerhouse designed for high-productivity hauling and rigorous construction applications. This specific build features a Big Rigs Hardox 5.3M Tipper Body, combining Isuzu’s most advanced 9.8L Euro VI engine.
Engine & Driveline Performance
Engineered for heavy-duty reliability, the FXZ 260-355 provides the high torque and effortless power needed for site work and highway transport.
Engine: Isuzu 6UZ1-TCC 9.8L 6-cylinder turbo diesel delivering 259 kW (353 HP) and 1,437 Nm of torque.
Transmission: Allison 4430 6-speed Generation 6 Automatic Transmission with adaptive shift controls for smooth, car-like operation under load.
Capacity: Boasts a 26,000 kg GVM and up to 45,000 kg GCM (with approved towing controls), providing massive legal payload capacity.
Axles: Meritor tandem drive set with inter-axle and cross locks on both axles for superior traction in muddy or loose terrain.

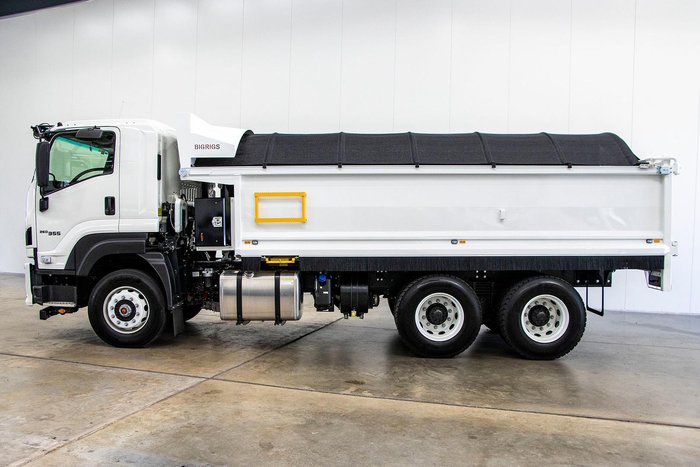

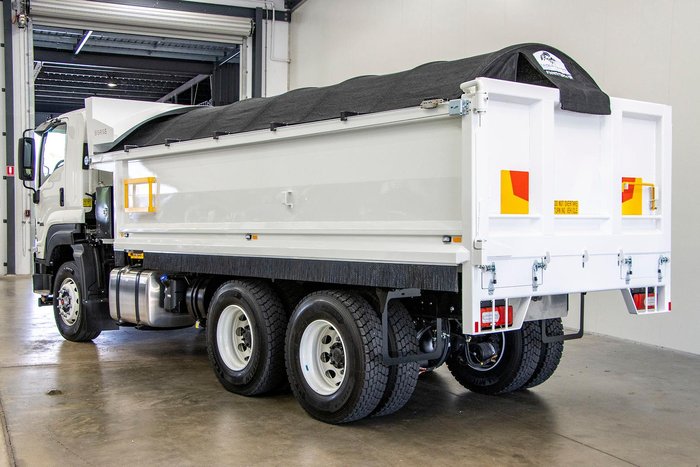

Big Rigs Hardox 5.3M Tipper Body
The 5.3-meter tipper body is constructed from genuine Hardox® steel, offering a superior strength-to-weight ratio compared to standard mild steel.
Hardox® Construction: Uses high-tensile, abrasion-resistant steel (typically 450 or 500 Tuf), which is thinner and lighter while remaining tougher and more dent-resistant than heavier alternatives.
Increased Payload: The lightweight design of the Hardox body reduces the truck's tare weight, directly increasing the amount of material you can legally carry per trip.
Durability: Engineered to handle everything from fine sand to abrasive rocks, with a service life often double that of standard steel bodies.
Tipping Gear: High-performance hydraulic hoists designed for smooth, rapid discharge of 5.3m loads.
Advanced Safety & Technology
The R45 sub-series features Isuzu’s most comprehensive Advanced Driver Assistance System (ADAS) suite to protect your crew and equipment.
Intelligent Safety: Includes Advanced Emergency Braking (AEB), Lane Keeping Assist (LKA), Lane Departure Warning (LDW), and Adaptive Driving Beam (ADB).
Adaptive Cruise Control: Full-speed Adaptive Cruise Control (FACC) maintains safe distances in highway traffic.
Cabin Tech: Equipped with a 10.1" MyIsuzu Co-Pilot HD touchscreen featuring Apple CarPlay, Android Auto, and truck-specific GPS navigation.
Driver Comfort: Features the ISRI 6860/875 NTS2 air-suspension seat for ultimate support during long shifts.
Warranty & Support
Standard Warranty: 6-year standard warranty (up to 600,000 km or 10,000 engine hours).
Roadside Assist: 6 years of 24/7 unlimited-kilometre roadside support.
