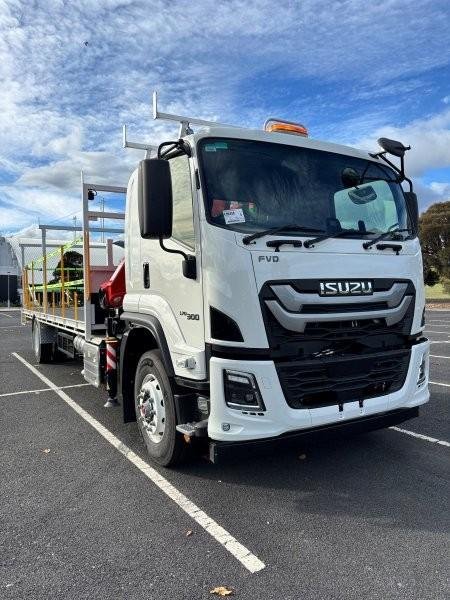

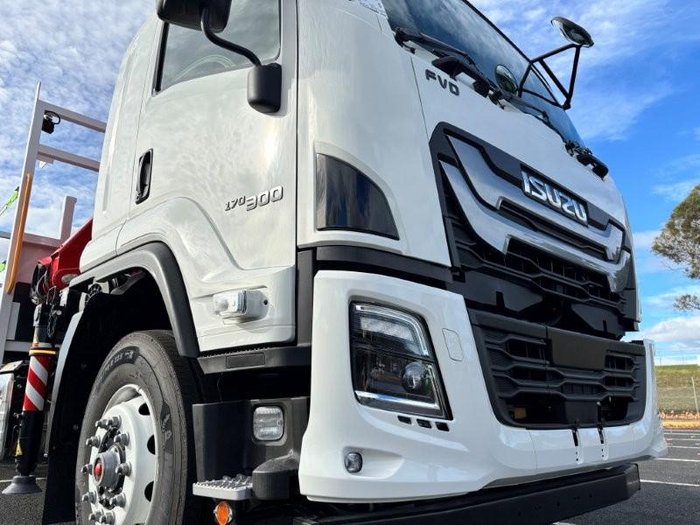

2025 Isuzu F Series

The all new MY25 Isuzu FVD 170-300 AT R70 cab chassis comes with a host of intelligent / passive safety features including;

Isuzu Intelligent Safety.
Adaptive Drive Beam, Advanced Emergency Braking (AEB), Anti-Lock Brakes (ABS), Anti-Skid Regulator (ASR),
Automatic Lighting System (ALS), Cab Tilt Warning (CTW), Customisable Speed Limiter (CSL),
Distance Warning System (DWS), Electronic Stability Control (ESC), Forward Collision Warning (FCW),
Full Speed Adaptive Cruise Control (F-ACC), Intelligent Speed Limiter (ISL), Lane Departure Warning (LDW),
Lane Keep Assist (LKA), Traffic Movement Warning (TMW), Traffic Sign Recognition (TSR).

Isuzu Passive Safety.
Driver and Front Left Passenger Seat Belt Pretensioners, Driver and Passenger Airbags,
ECE-R29 Cab with side Anti Intrusion Beams, Overhead compartments, Centre Console Box & Storage Tray

Other Features.
Climate Control Airconditioning, Bi-LED Headlamps with Daytime Running Lights (DRL), Heated and Powered Mirrors,
Passive Entry & Start System (PESS), Central Locking with Remote Keyless Entry and Engine Immobiliser.
ISRI 6860/875 NTS2 Air Suspension Drivers seat rated to 150Kg,

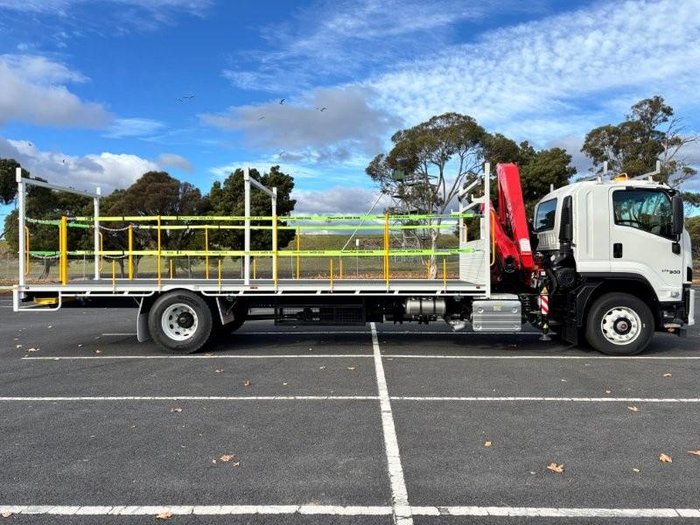

Tray & Crane Details.
All Steel Flat Tray – 7,500mm L x 2490mm W – 5mm Floor
• RHS style headboard with chequer plate protection panel to bottom of cab window.
• Fit long grab handles to front face of headboard & Grippy steps on front stirrups (painted yellow)
• 100mm horns on headboard and hurdles
• Fabricate and fit foot pad holders, one either side of headboard
• Raised coming 20mm at sides with a sweep out rear
• Rope rails along each side, with front corner non-slip pipe steps and fuel filler access.
• Painted white & black floor
• LED side marker lights each side to comply with ADR13/00
• LED lights for all statutory side, front, rear outline marker lights , noting we will now have factory LED tail light set
• All compulsory mudguards, reflectors and marker plates to suit registration requirements

• 3 x piece center and rear hurdles with 100mm horns & storage on headboard.
Hurdles will include load rating certification Fit grab handles, one either side to rear hurdle (painted yellow)
• 6 sliding winches in track on passenger side plus 3 x fixed (front, center and rear) on opposite side suit lashing at ladder racks (9 in total).
• Pockets for combing pins & set of pins painted yellow

• SpanSet WebRail heavy vehicle fall protection system consisting of
Pocketed posts (removable) forward of rear access steps with grab handles both sides
Two rows of straps across rear and down each side from front of ladder access to headboard
Two removable chains covering ladder access
Every second combing pin to be 30mm dia. 4140 with strap retainers (2m max) paint yellow

• Under body toolbox 1200 x 500 x 500mm under body steel toolbox with flush locks
• 1500mm long dunnage box fitted on driver side

• Supply and fit an LED low profile light bar to a 2400mm cross over bar fitted to the front of the cab roof complete with 100mm horns

• Fit an additional 2400mm cross over bar to rear of the cab roof complete with 100mm horns
• Supply and fit double rung / 3 step folds out pull out steps/platforms to the rear either side – in yellow powder coat

• Isuzu Reverse camera
• LED Reverse Lights x 2
• PTO suit Alison Auto
• Subframe, hydraulics and install of Fassi F105, Remote, FSCH etc
• Airbag Dump Valve on activation of PTO
• Isuzu Tow hook to remain on chassis rear
• 2 x rearward facing LED work lights on headboard switched from dash
• 2 x Amber Pulse at tray rear – linked to beacon switch
• Digital switch panel in cab for control of accessories switching
• Isuzu Spotter Mirror
• Modification assessment to VSB6

FASSI 105B.0.24 Crane – 4,560Kg @ 2.0m extending to 595Kg @ 12.0m (Manual Extension not included)
Hydraulic Outriggers Radio Remote, all VASS Certified.

Truck is in stock ready for immediate delivery ex Tasmania.

WAS $365,000.00 DRIVE AWAY

NOW

DRIVE AWAY PRICE OF $350,000.00 INCLUDES 12 MONTHS TASMANIAN REGISTRATION AND
STAMP DUTY ONLY !!

Any freight charges and local Registration and stamp Duty costs will be at purchasers expense if outside Tasmania...
