2025 Isuzu F Series

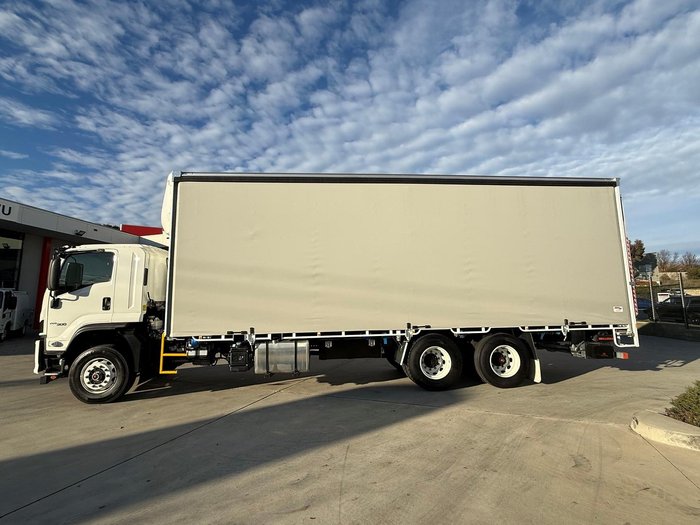

MY25 ISUZU FVL 260-300 AT R67 6 x 2 with 14 PALLET CURTAINSIDE BODY with Tailgate

**READY FOR IMMEDIATE DELIVERY **

*Comes with a FREE 3-Year/75,000km's Essentials Service Agreement included!

Body Details:
- Heavy-duty rope rails along both sides with double-rung non-slip, front steps & rear corner, non-slip, pipe steps.
- Engineered & certified 150mm front wall frame (which exceeds Load Restraint Guide requirements).
- 600mm high chequer-plate pallet protection panel inside fully sheeted front wall.
- Pivoting safety grab handles inside front wall.
- All aluminium roof structure (for reduced weight) with one-piece, aluminium skin.
- Primed & painted 2-pack, white, polyurethane topcoat & grey deck area.
- All compulsory mudguards, mudflaps, reflectors & DNO marker plates to suit registration requirements in State of intended operation.
- Loose sleeve style Easy Glide™ curtains (890gsm Polymar® 8556 material).
- Curtain colour to be confirmed (with Black PVC pelmet).

Body Options Included:
- Fibreglass NoseCone® to suit body style.
- 5mm steel chequerplate floor to suit pallet jacks with 18mm lip coaming on both sides.
- Curtain wear protection strips on curtains.
- Front & Rear mounted curtain tensioners (pair of each).
- Attards Lightning Latch Buckle-less curtains.
- Four-section gate hanging system.
- Curtain wear protection strips on curtains.
- 1500mm high lift-out light-weight steel gates. x 8
- Strap N Go Bungee system. x 7
- Ratcheting load binders in track under kerb side x 7
- Steel toolbox 1200 x 450 x 450mm with inset lock, mounted under floor
- Reverse camera Factory
- Pivoting safety grab handles inside rear pillars.
- Rear under-run bar to suit selected tailgate loader (with light protection frames & steps).
- Pivoting top panel to allow tailgate to seal rear opening.
- Rear door frame open to suit tailgate as rear doors.
- Seal kit to suit tailgate as rear doors.

- Red-arc Smart Start battery guard kit with additional battery carrier & maintenance free batteries.

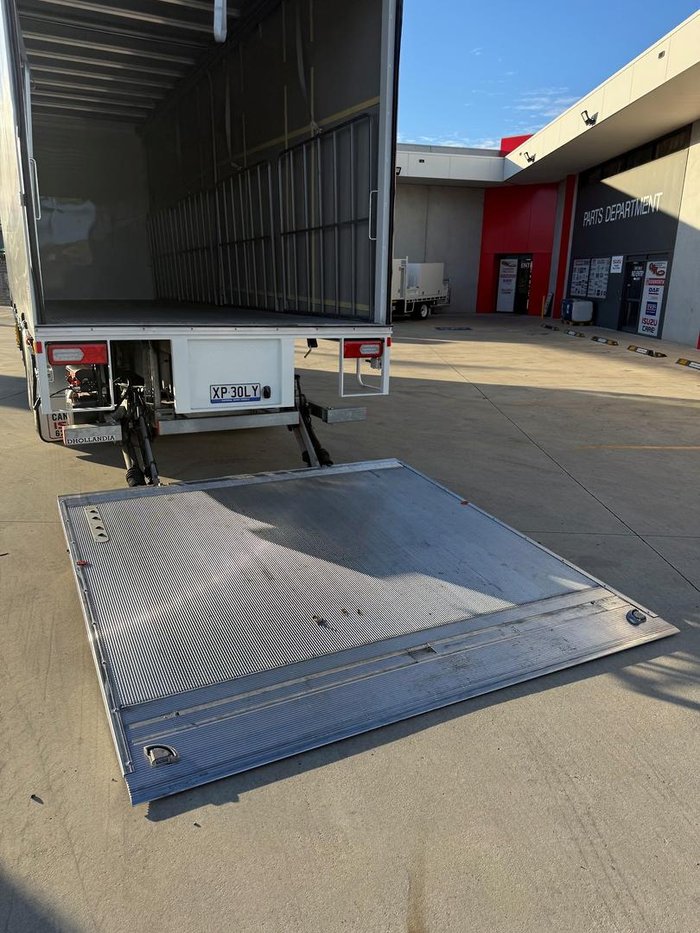

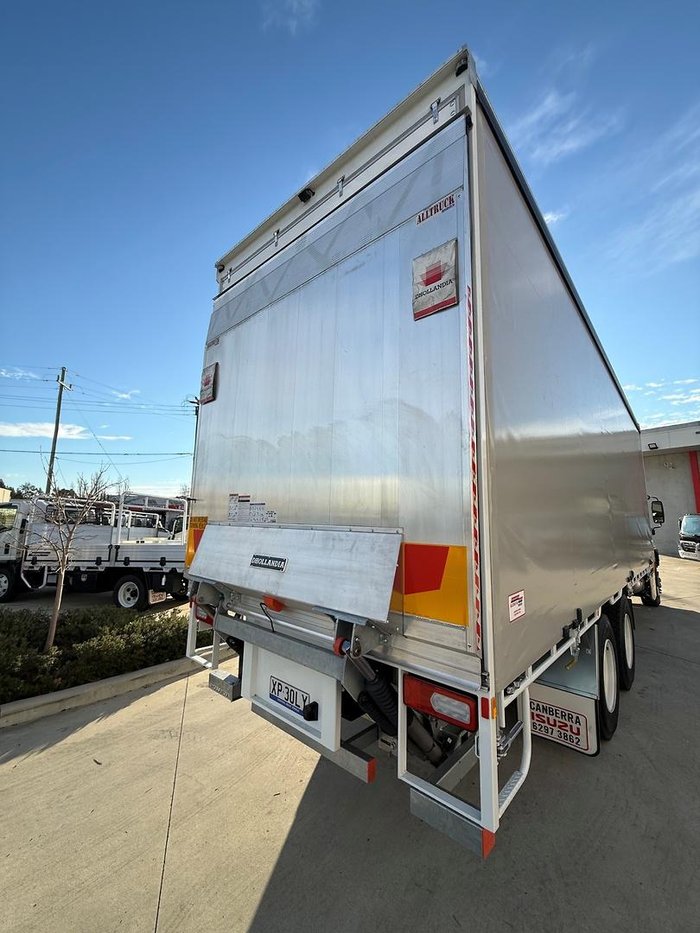

Tailgate
- Dhollandia DH-LMA.20 Tilt Series Tailgate (2000kg cap) with 2450mm wide x 2600mm
- deep alum platform (acts as rear door), mechanical safety lock, auto ground levelling,
- fixed & cable & foot controls, LED safety lights, trolley stops. Adds 275mm & 480kg.

New Class Leading Safety Features, Backed By An Industry Leading 6-YEAR WARRANTY, There Is No Medium Duty Truck Better Suited To Your Needs.

The Truck Market Has Evolved – We're Now Taking Orders On The All-New Isuzu F-series Euro-V1 Range Come And Secure your New Redefined Isuzu

The New Euro 6 Comes With-
Isuzu DB6A-TCC Type 6 cylinder
Power 221 kW (300PS) @ 2,200 rpm Torque 981 Nm @ 1,000 - 2,100 rpm
Displacement 6,690 cc
Emission Standard ADR 80/04 (Euro VI) compliant Emission Control
SCR (Selective Catalytic Reduction)
DPD (Diesel Particulate Diffuser)
Auxiliary Brake Engine Compression Brake (I-Brake)

TRANSMISSION Allison 3500 GEN 6
• 6 speed automatic

Driver Axle
- Meritor RS-23-161G
- Lazy Axle Meritor TR4670
- Type Single drive + lazy axle combination

Brakes
- Type Full Air dual circuit Disc brakes
- front and rear with EBS
- Diameter Front 434 mm
- Diameter Rear 434 mm
- Park Brake Spring park brake acting on all rear wheels

Suspension Rear
-Hendrickson HAS460 Air bag

Cabin Interior
- AIR CONDITIONING Auto control
- ENTRY ASSISTGRIPS Door and roof pillar mounted
- INTERIOR LIGHTING LED door open lamp. Bright LED room lamp

OCCUPANCY
-ISRI 6860/875 NTS2 air suspension driver’s seat with heating and ventilation
-LH passenger bucket seat, plus centre seat with folding seat back and storage compartment
-Rear space: ADR42 Compliant sleeper
POWER OUTLET 24V

SEATBELTS
-lap sash seatbelts in all outboard seating
-positions (Integrated driver). Centre seat lap belts.

STEERING COLUMN Tilt/telescopic adjustable

STORAGE Overhead cabinet,2 cup holders, door pockets

Key Features
• ADR 80/04 (Euro VI) Compliant
• Advanced Emergency Braking (AEB)
• Lane Departure Warning (LDW) with Lane Keeping Assist (LKA)
• Full Speed Adaptive Cruise Control (FACC)
• Electronic Stability Control (ESC)
• ECE-R29 cab with side anti-intrusion beams
• Isri 6860/875 NTS2 Air Suspension Driver’s Seat
• Bi-LED Headlamps with Daytime Running Lamps

Intelligent Safety
ACTIVE SAFETY
Advanced Driver Assistance Systems (ADAS)
- Adaptive Driving Beam (ADB)
- Advanced Emergency Braking (AEB)
- Anti-lock Braking System (ABS)
- Anti-Slip Regulator (ASR)
- Automatic Lighting System (Front and Rear) (ALS)
- Cab Tilt Warning (CTW)
- Customisable Speed Limiter (CSL)
- Distance Warning System (DWS)
- Electronic Stability Control (ESC)
- Forward Collision Warning (FCW)
- Full speed Adaptive Cruise Control (FACC)
- Intelligent Speed Limiter (ISL)
- Lane Departure Warning (LDW)
- Lane Keeping Assist (LKA)
- Traffic Movement Warning (TMW)
- Traffic Sign Recognition (TSR)

AUDIBLE WARNING
- Reverse alarm
CAB MOUNTING
-Rear coil spring suspension with hydraulic shock absorbers

ENGINE ACCESS Electro-hydraulic cab tilt

EXTERIOR LIGHTING
- BI-LED Headlamps with Adaptive Driving
- Beam (ADB) and Daytime Running Lamps(DRL)
- LED front foglamps
- LED Roof mounted clearance lamps
- LED Tail lamps

FRONT BUMPER
- 3-piece resin, body coloured
MIRRORS
-Heated & powered exterior main mirrors with flat glass and adjustable convex "spot" mirrors

SECURITY
- Passive Entry and Start System (PESS) with remote central locking and immobiliser

STEPS
-Heavy duty anti slip steps

WIPERS Auto windshield wet wiper system

STANDARD WARRANTY
New Vehicle 6 years • 500,000km
Cab Perforation Corrosion 3 years • unlimited km
Isuzu Assist: 24 hour roadside assistance (6 years, unlimited km)
